I worked on a series of patent illustrations to protect Vandalsoft's intellectual property.

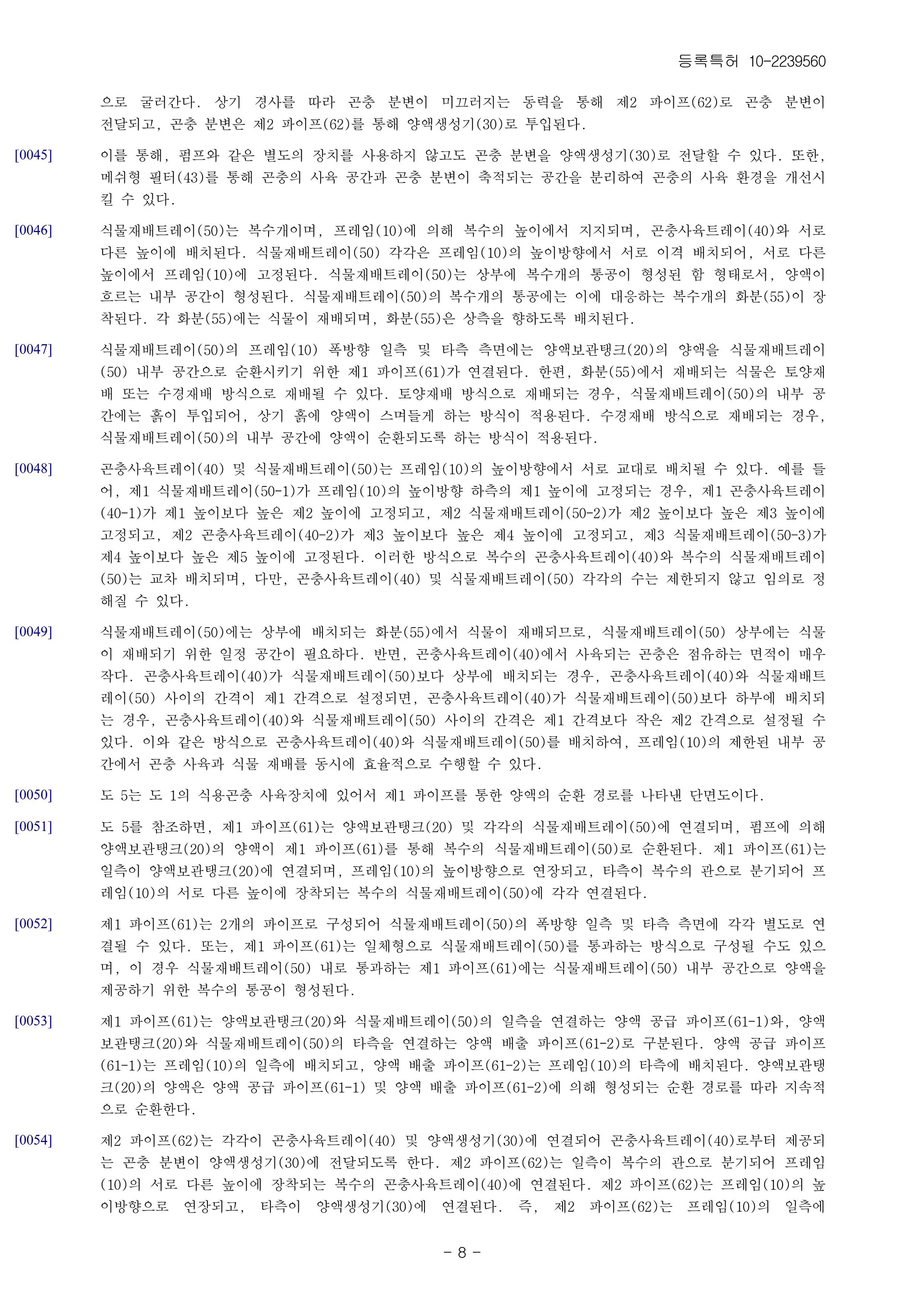

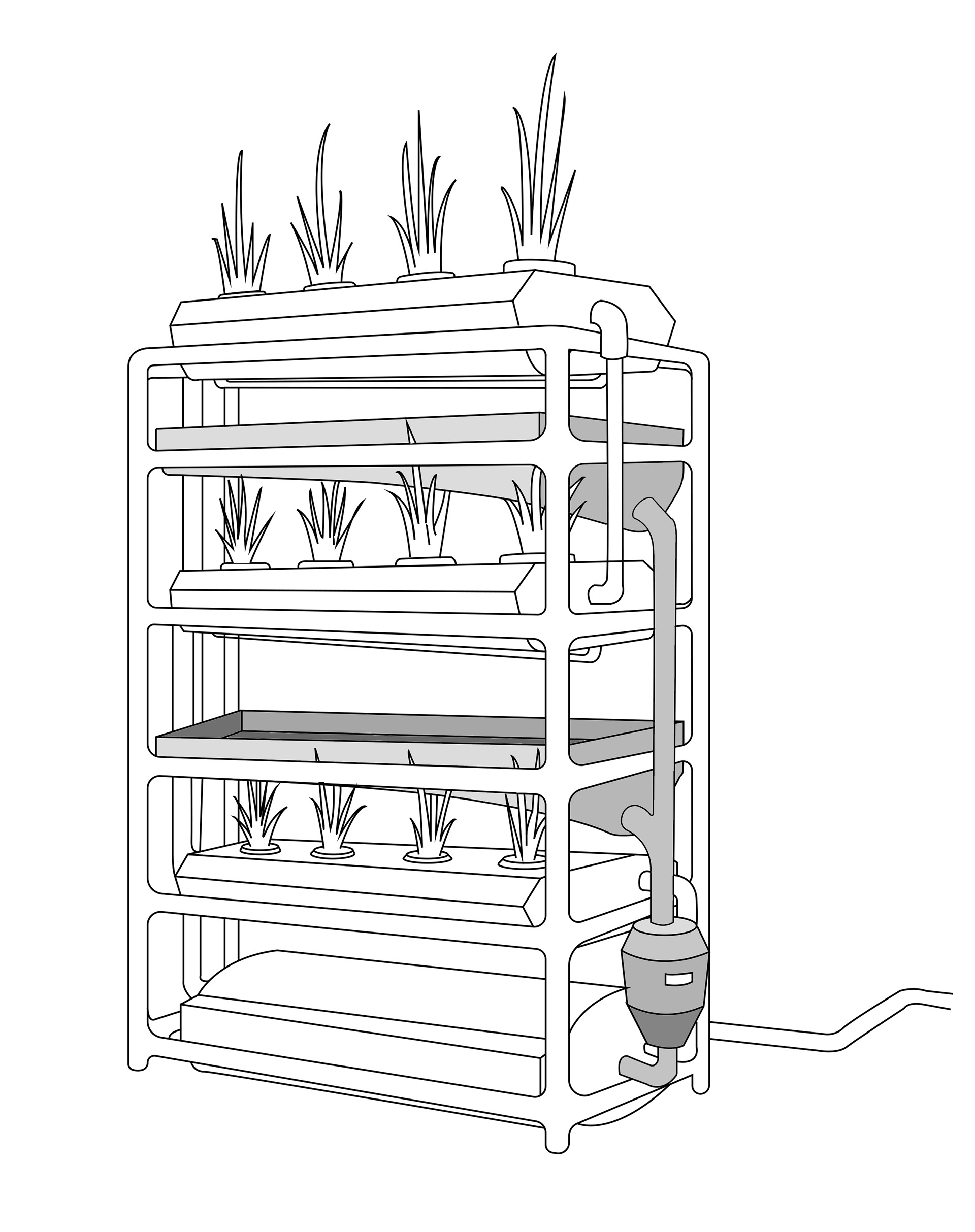

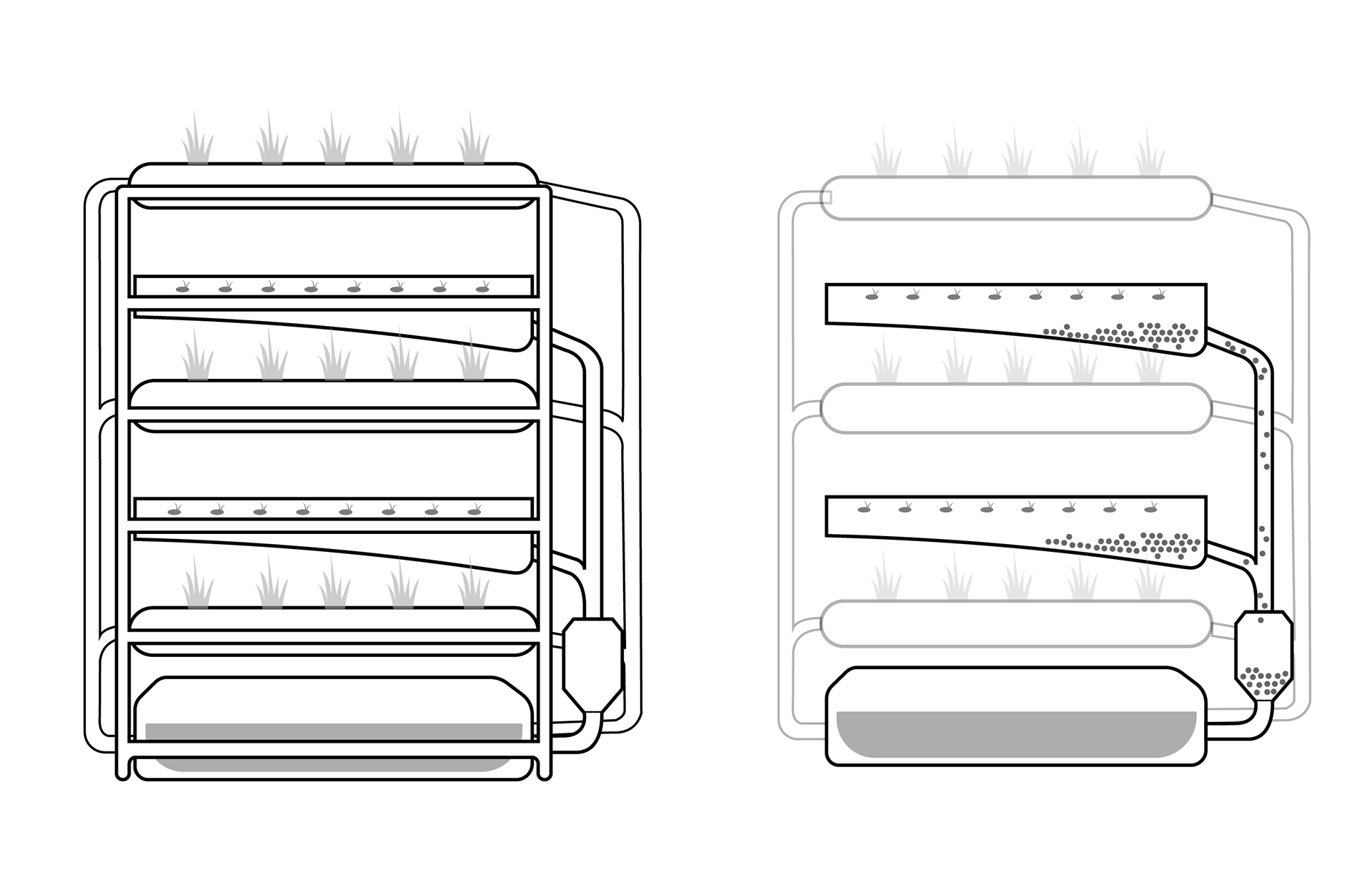

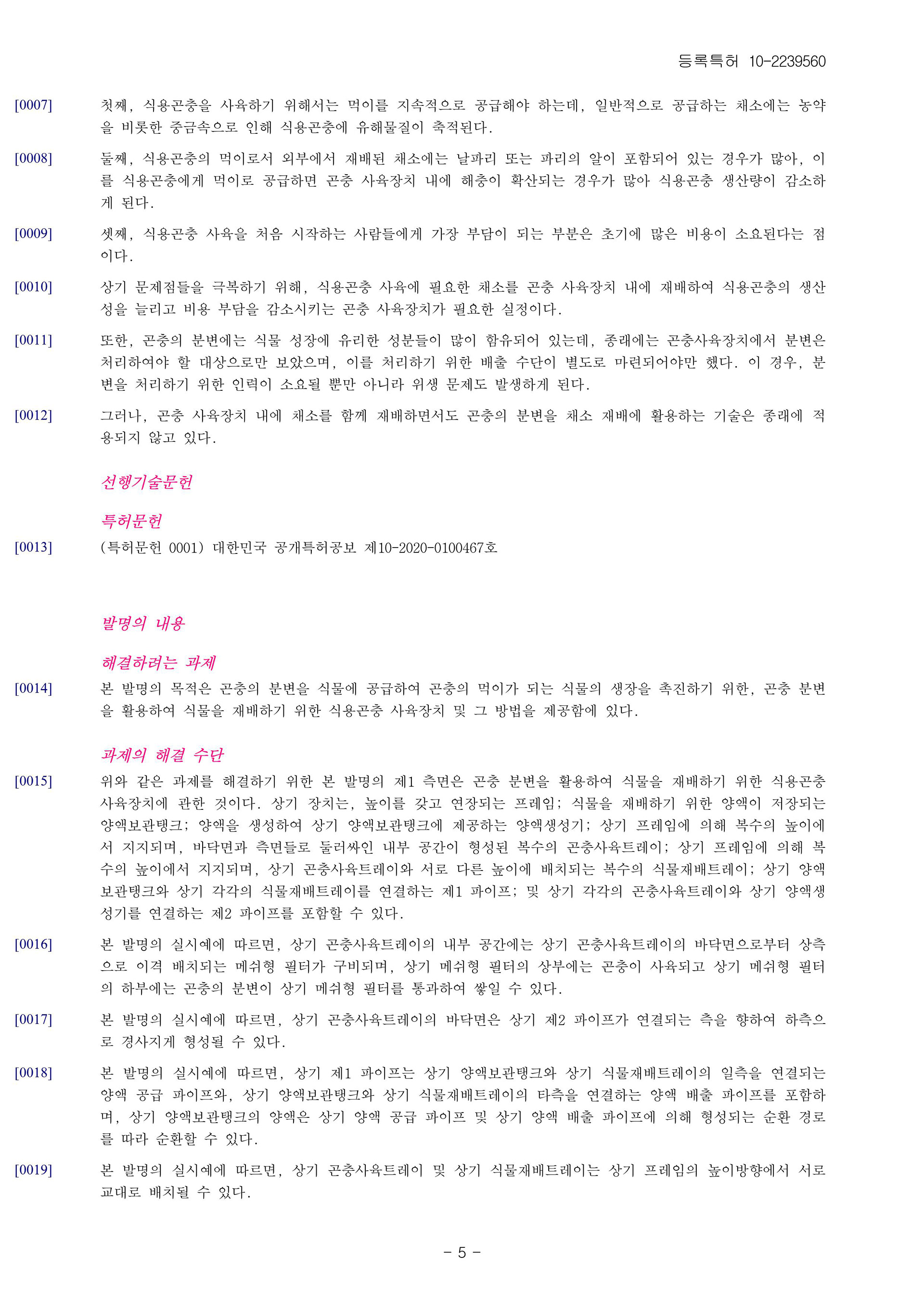

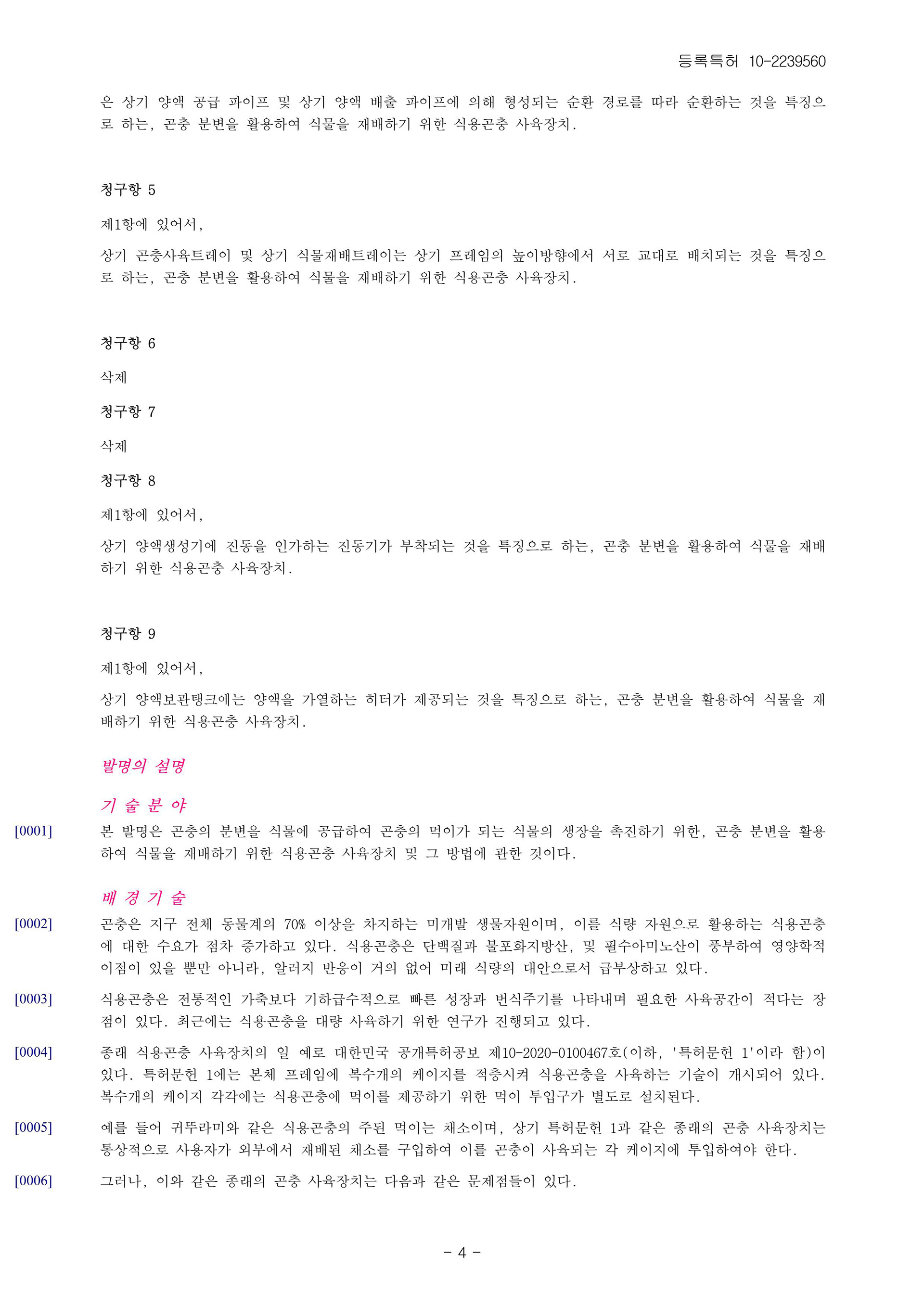

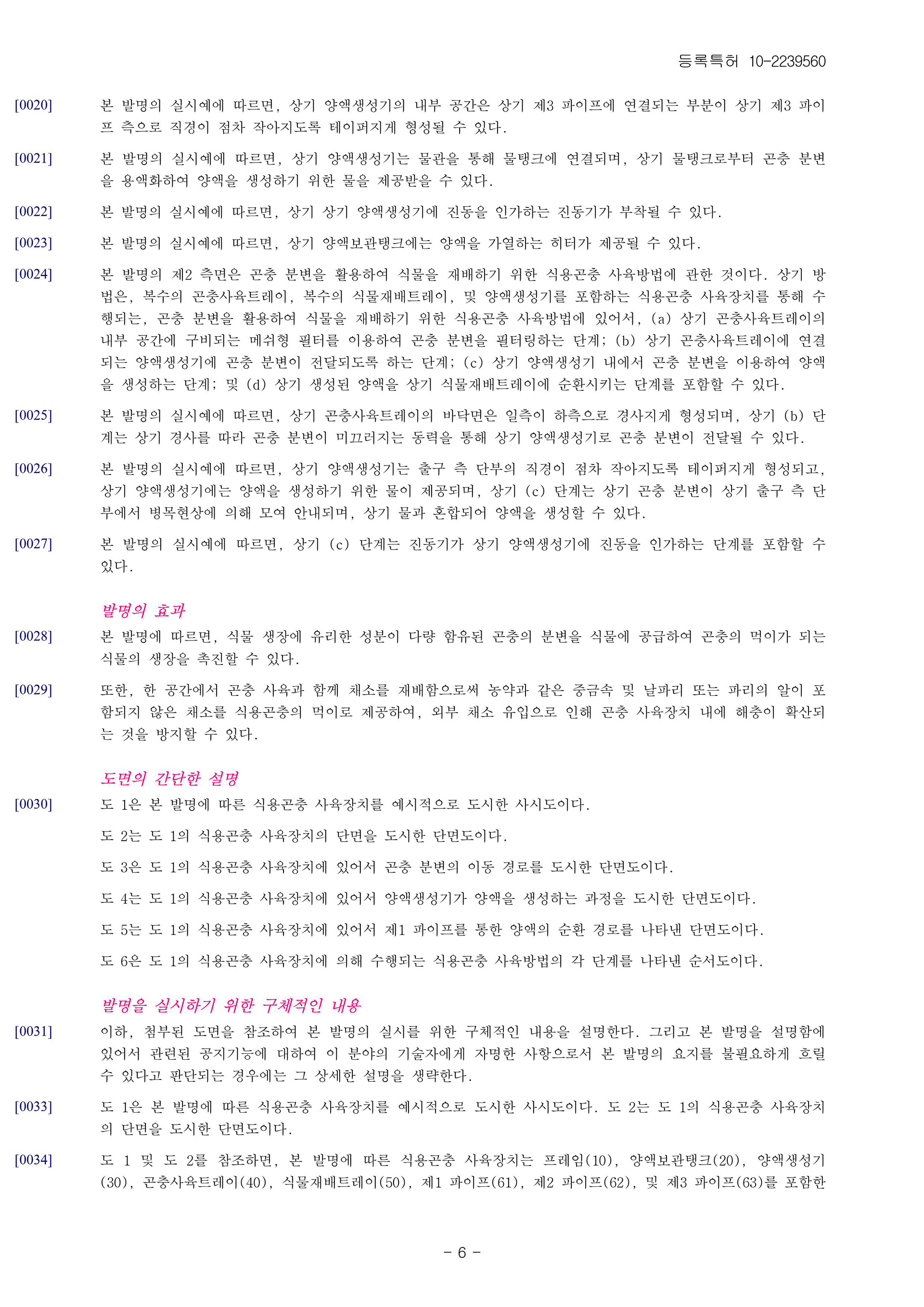

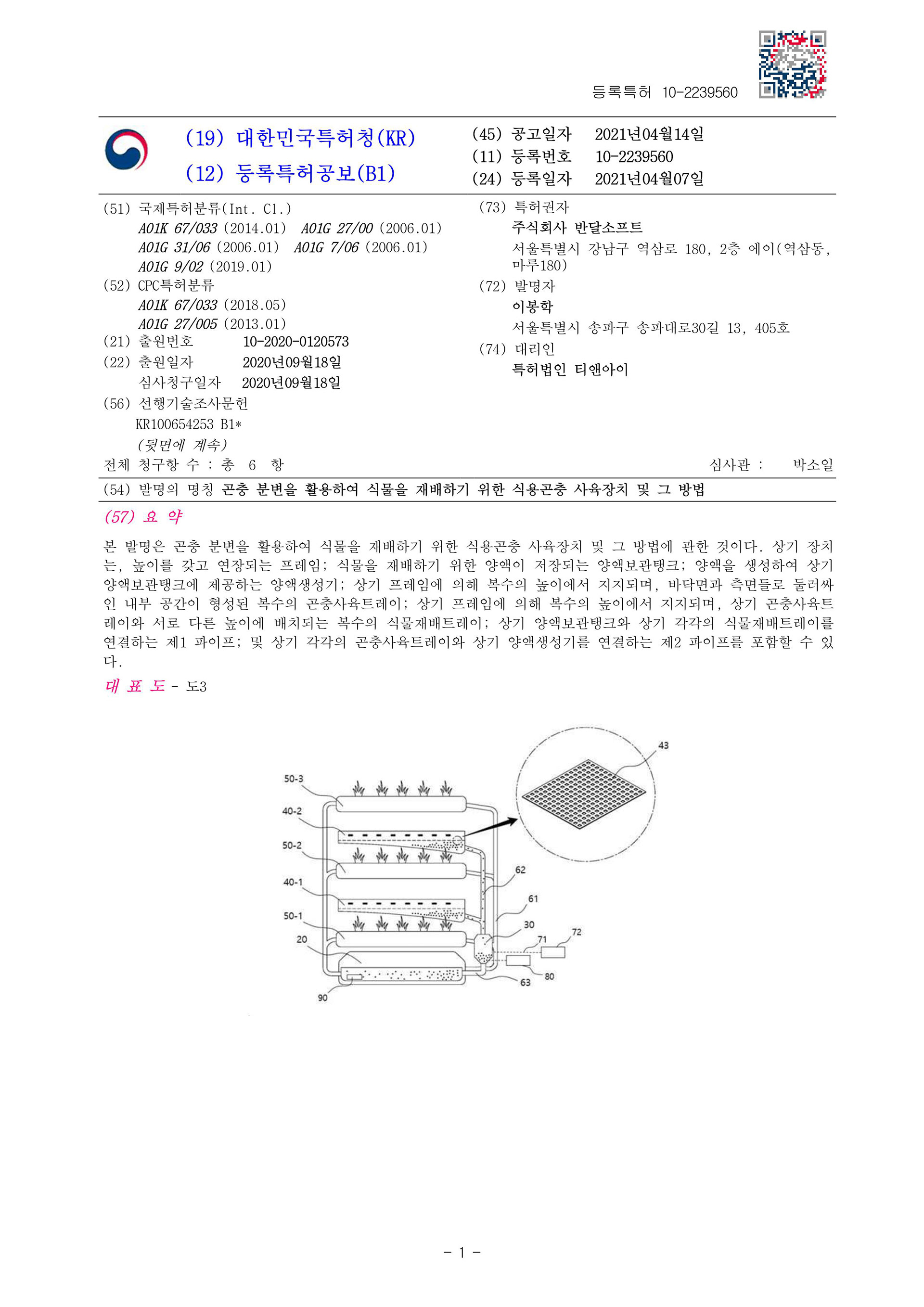

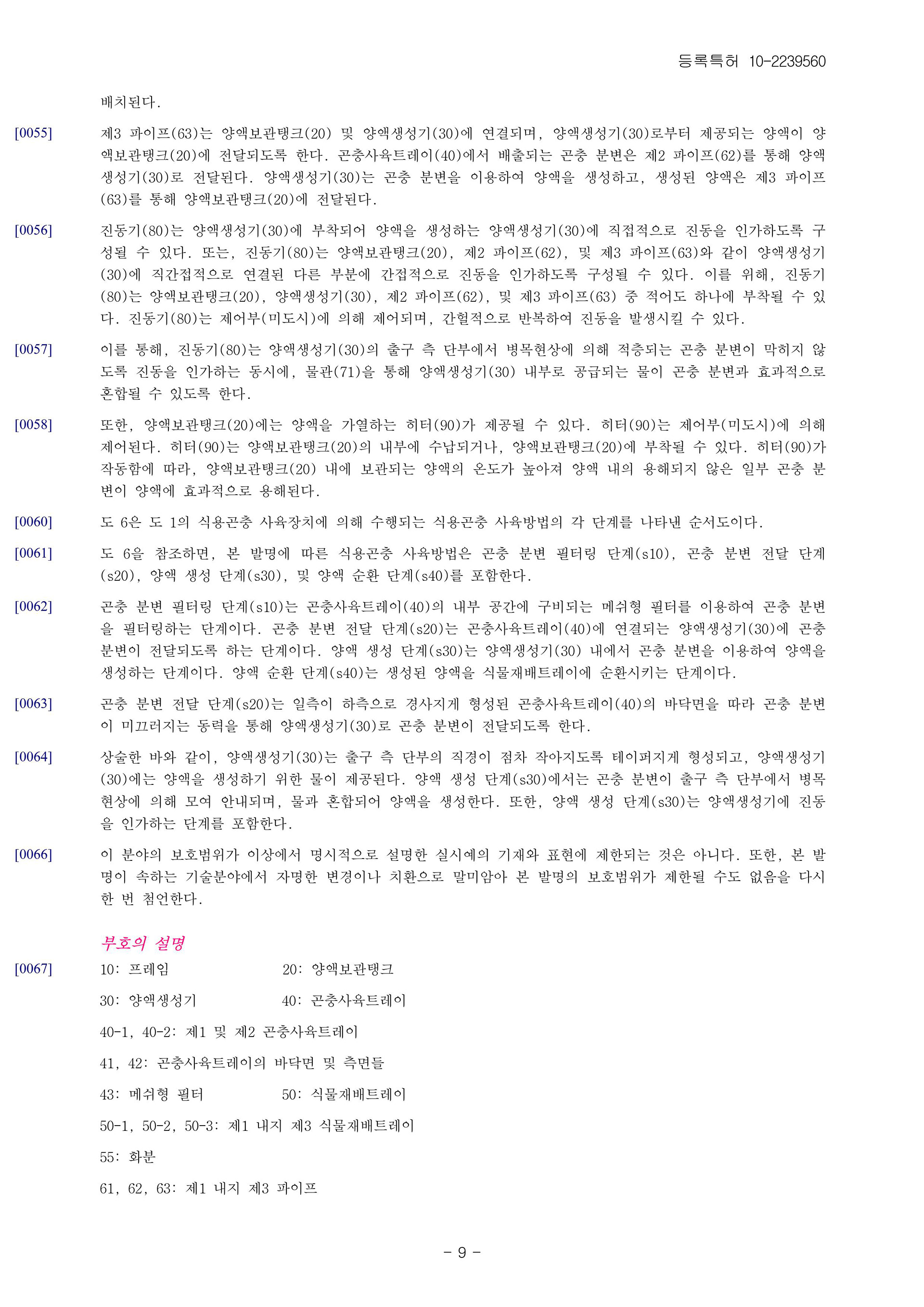

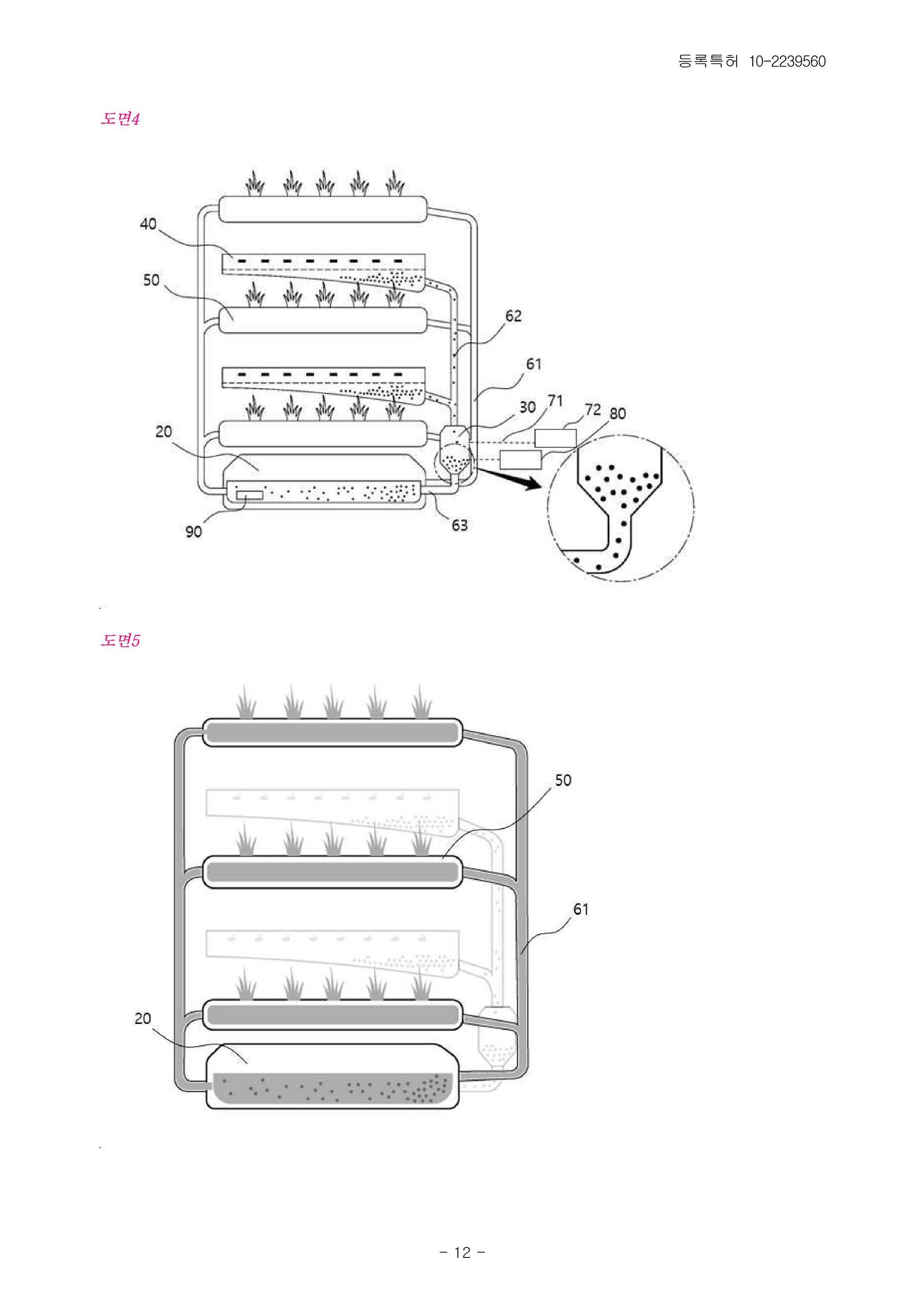

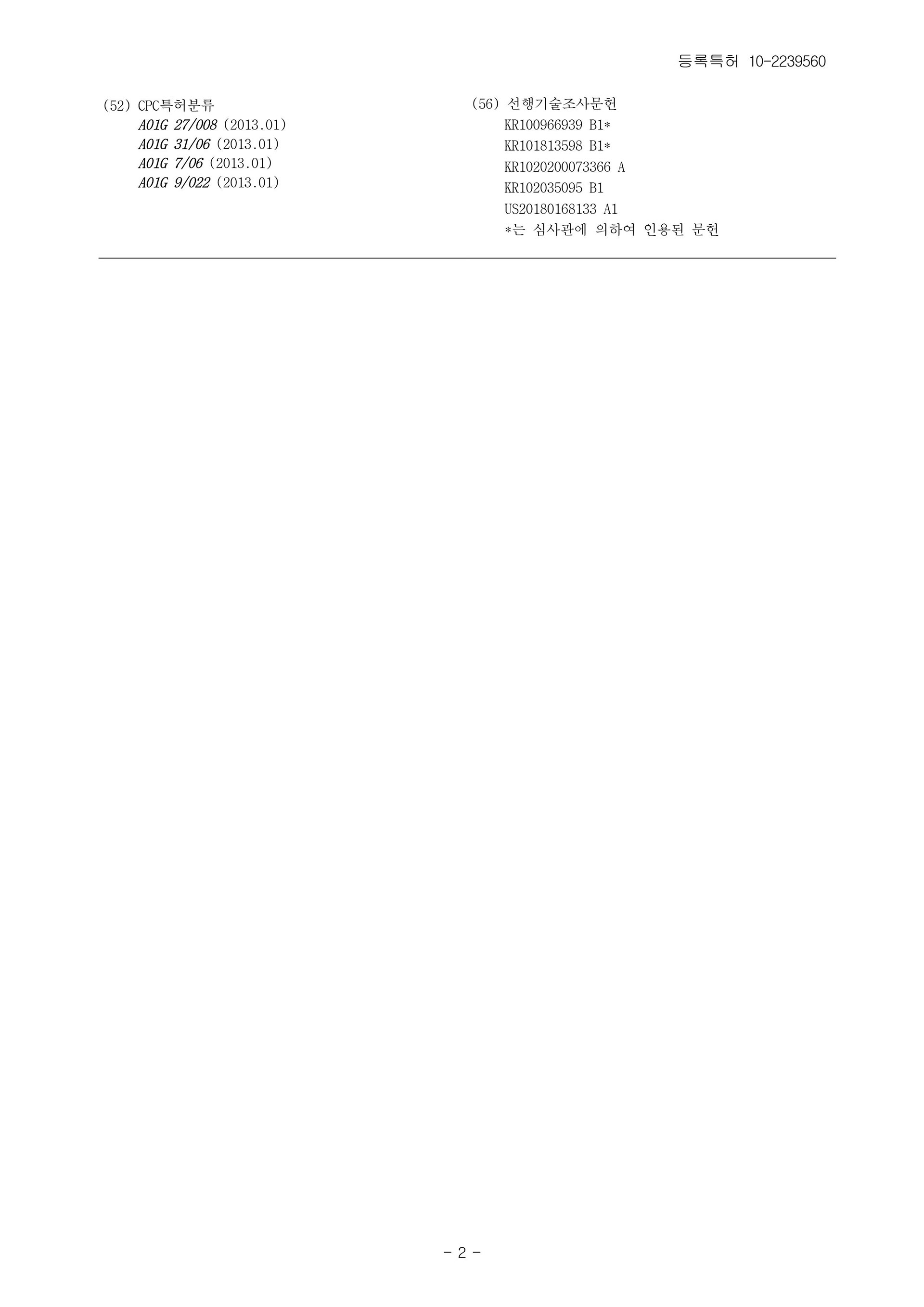

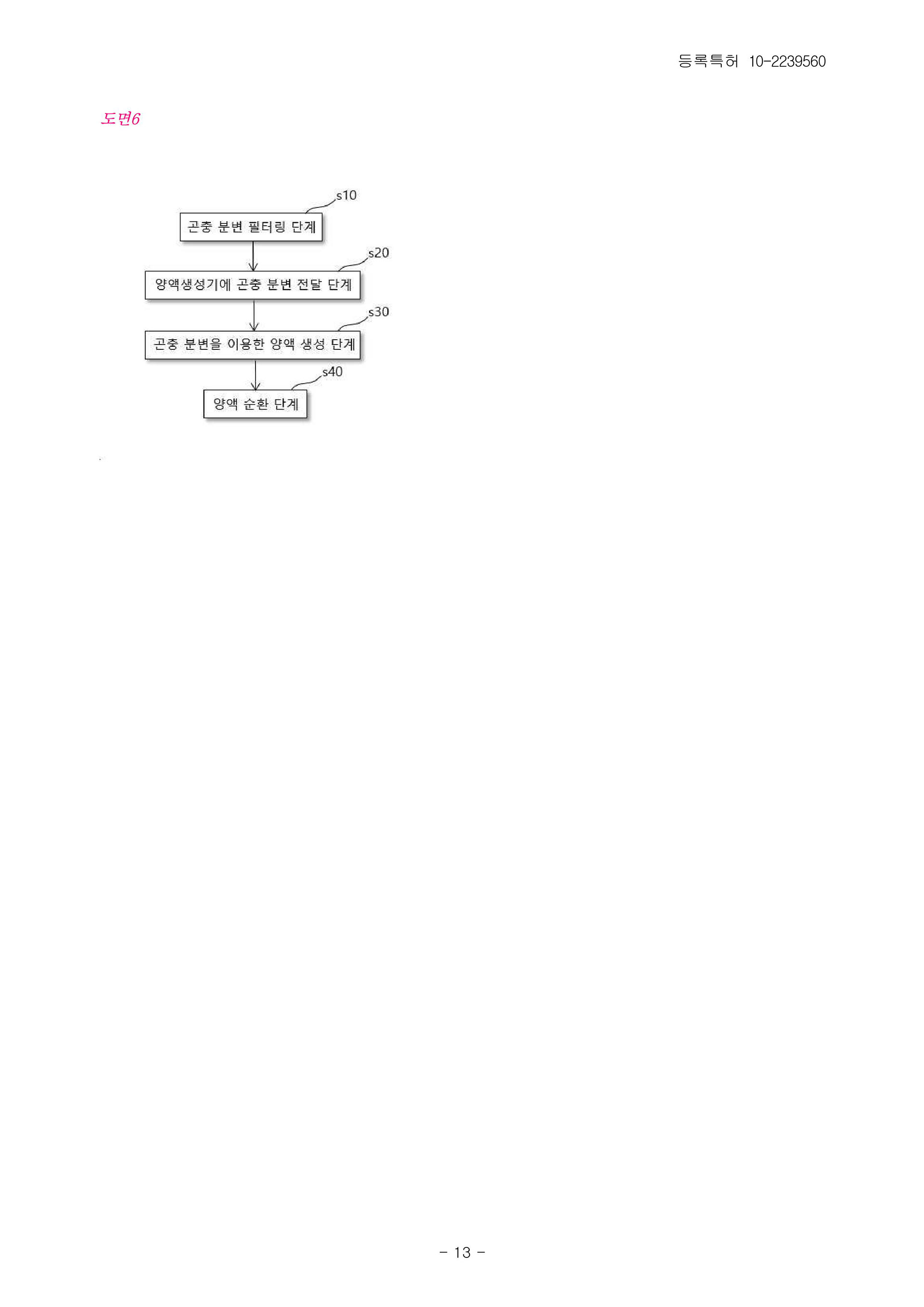

1. Insect Hydroponic Device (Patent Acquired)

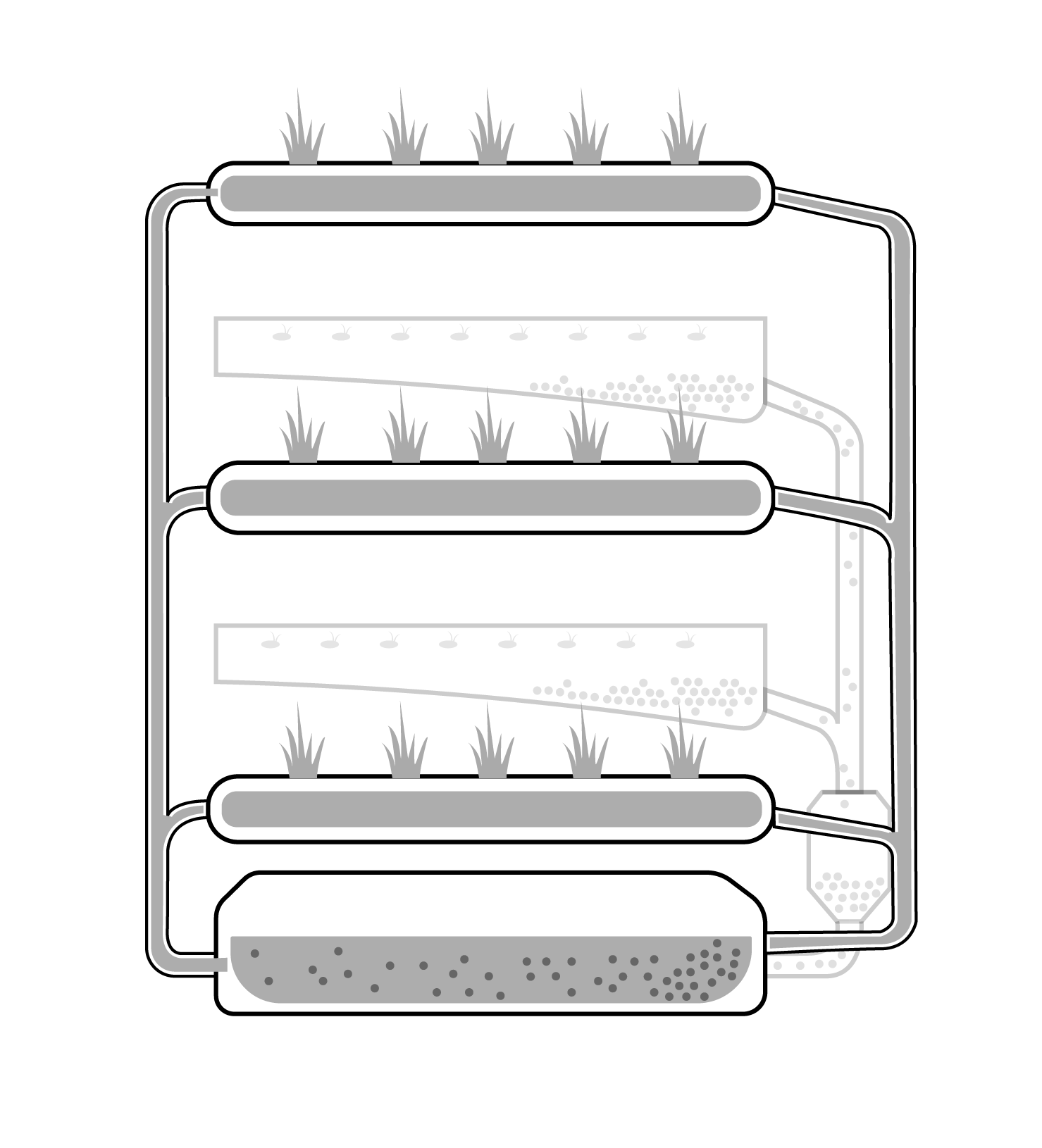

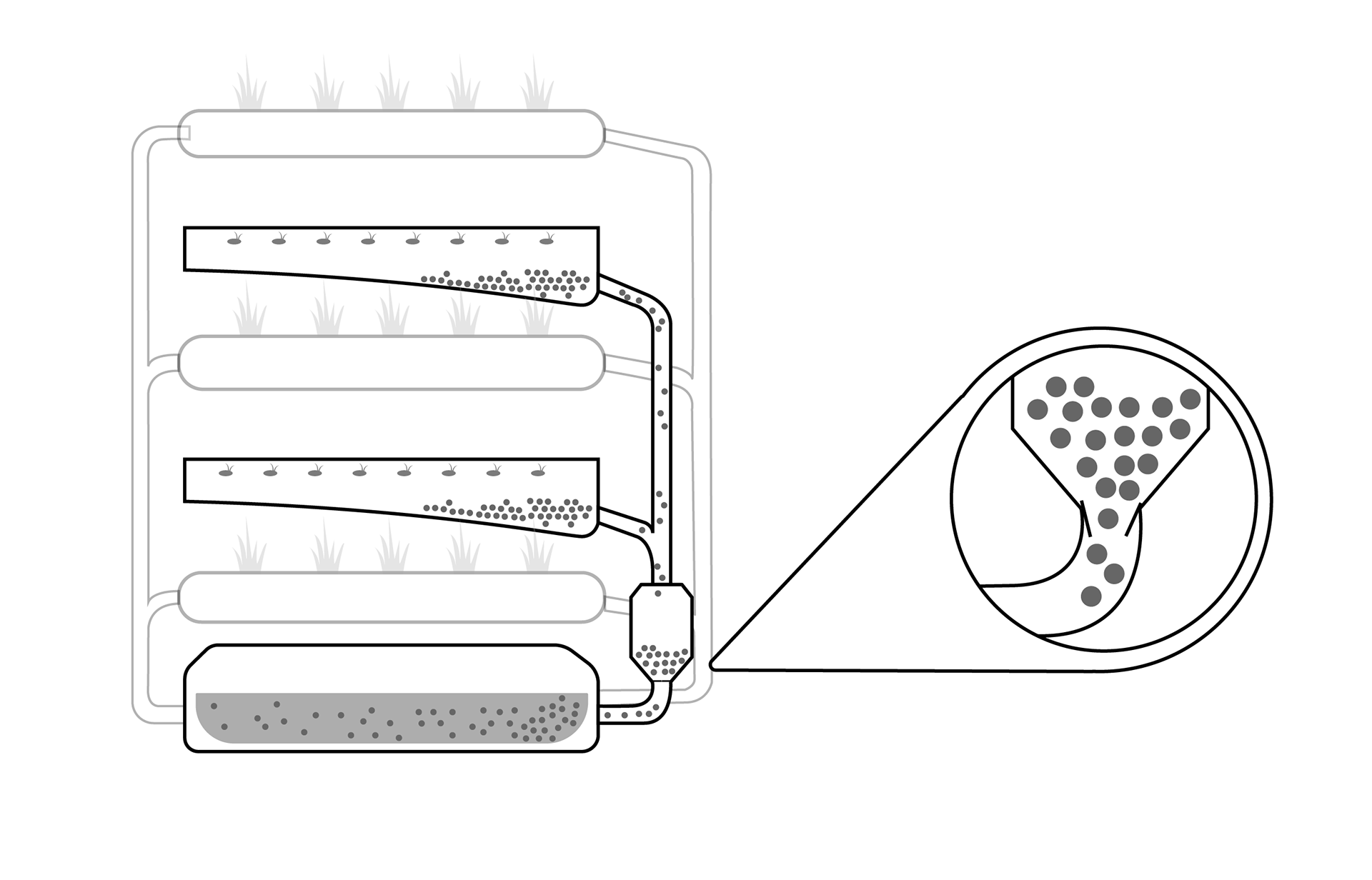

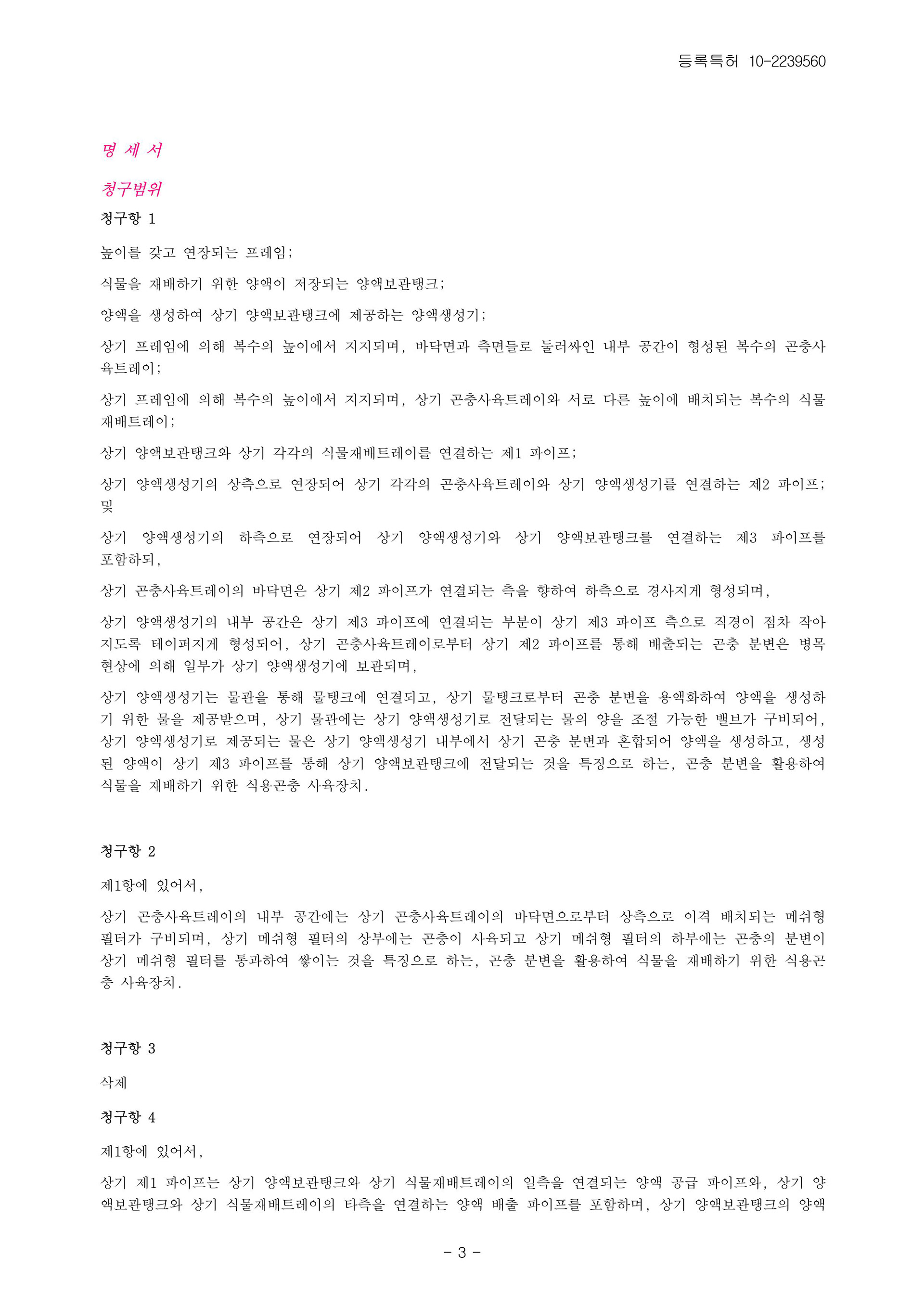

The 'Insect Hydroponics Device' is a patent for the mechanism that utilizes hydroponics for insect breeding. The feces of the insect (crickets) is then used as fertilizer for plant growth.
Patent DOI: https://doi.org/10.8080/1020200120573
Registration Number: 1022395600000
Acquisition Date: (2021.04.07)

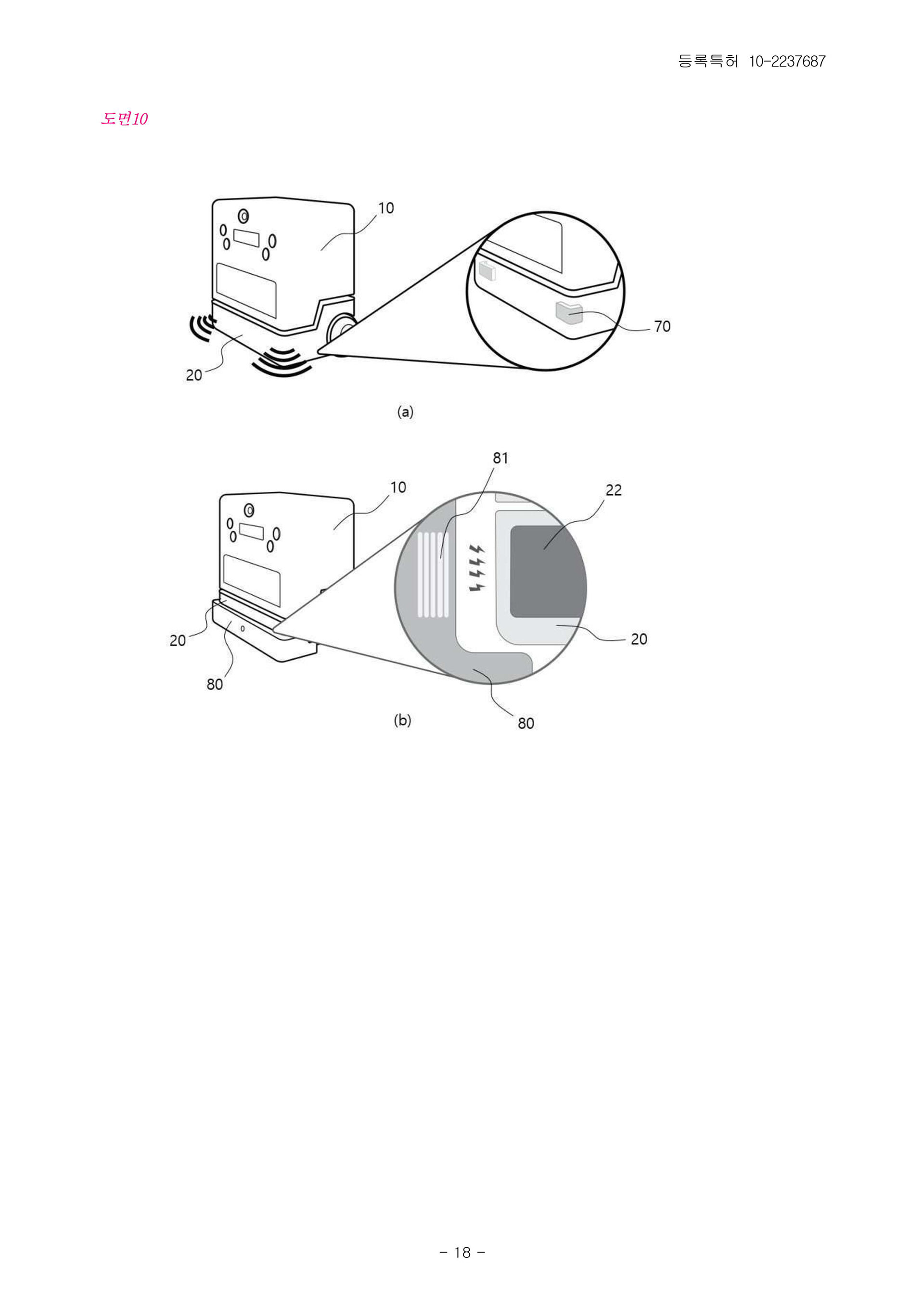

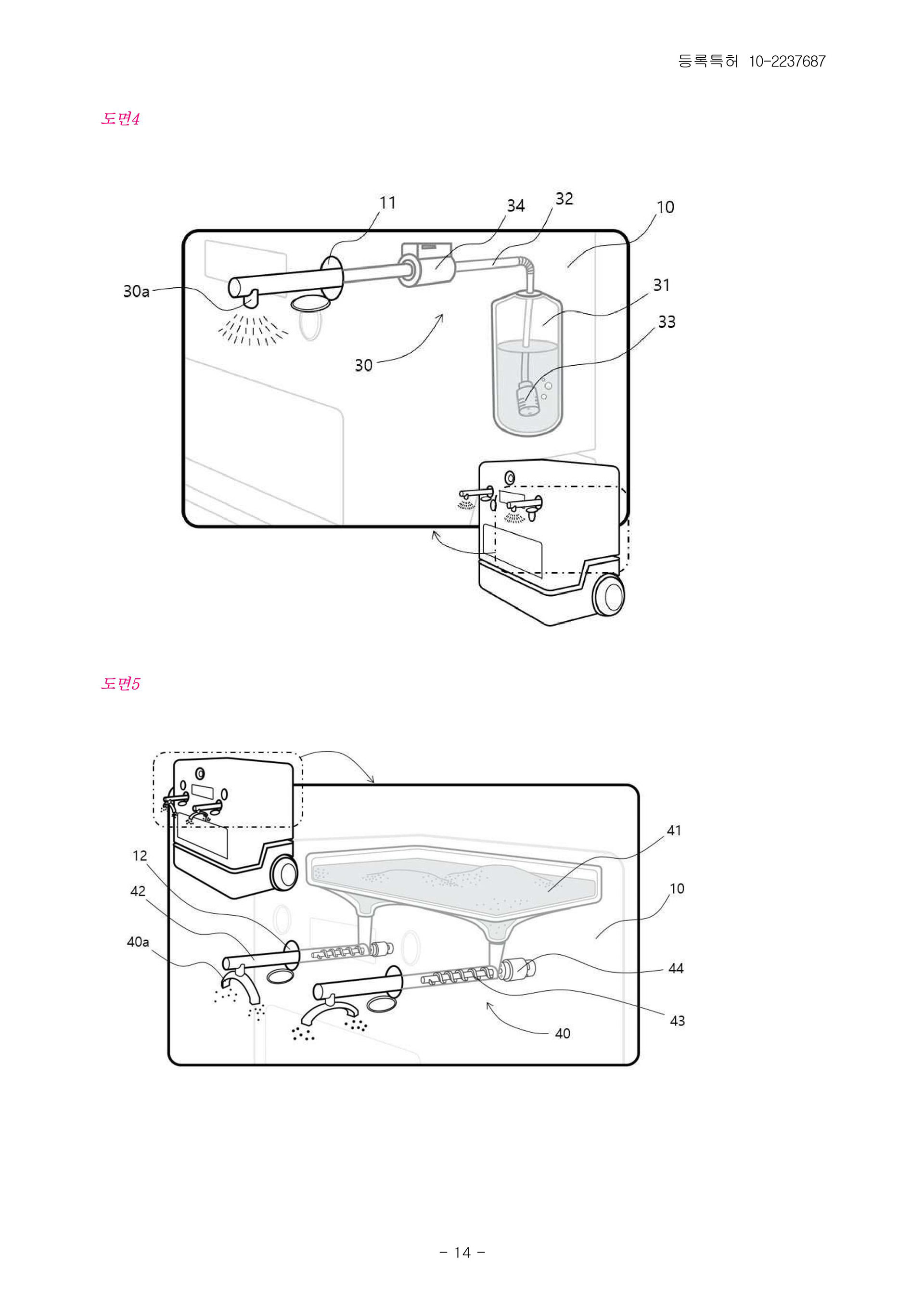

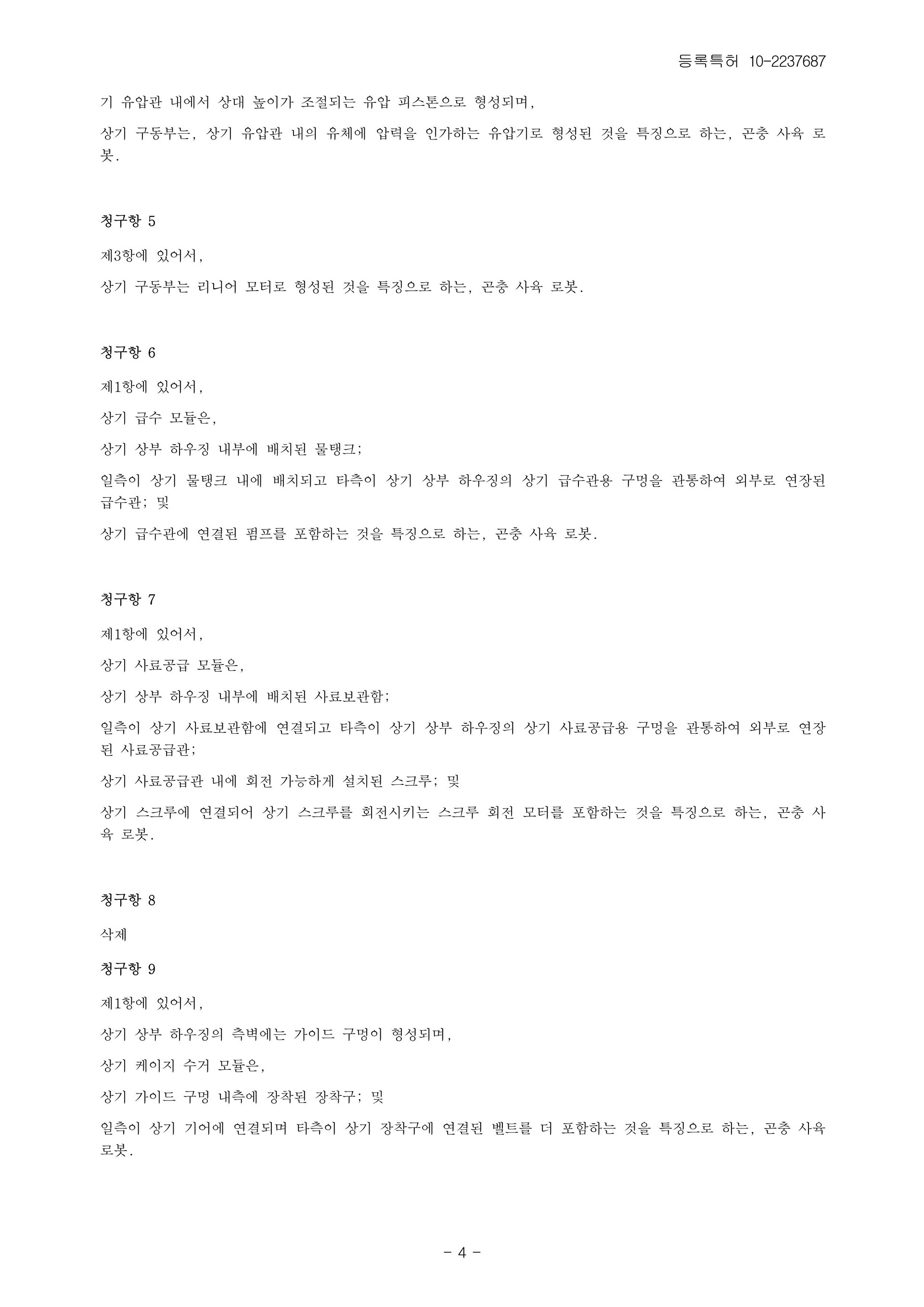

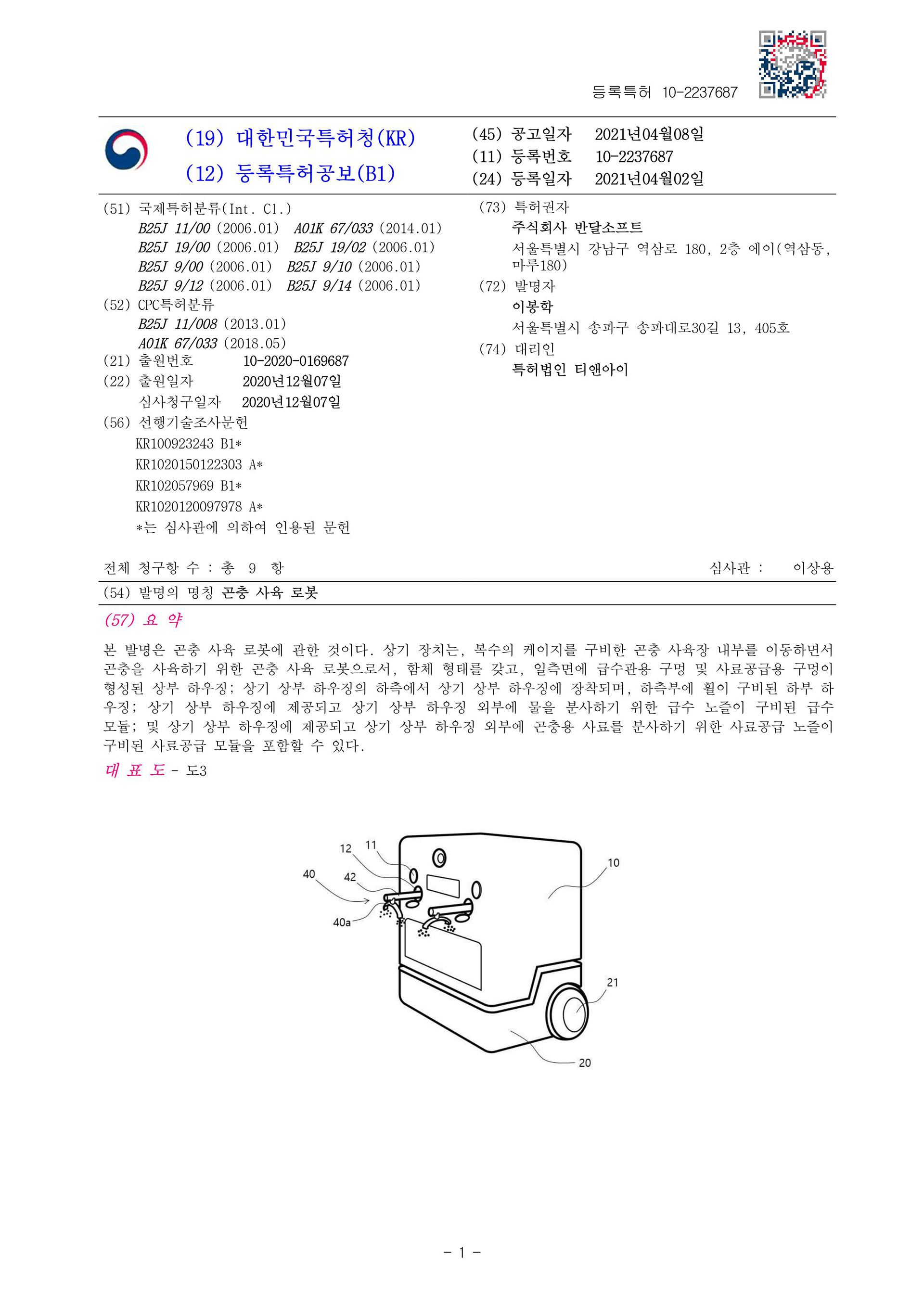

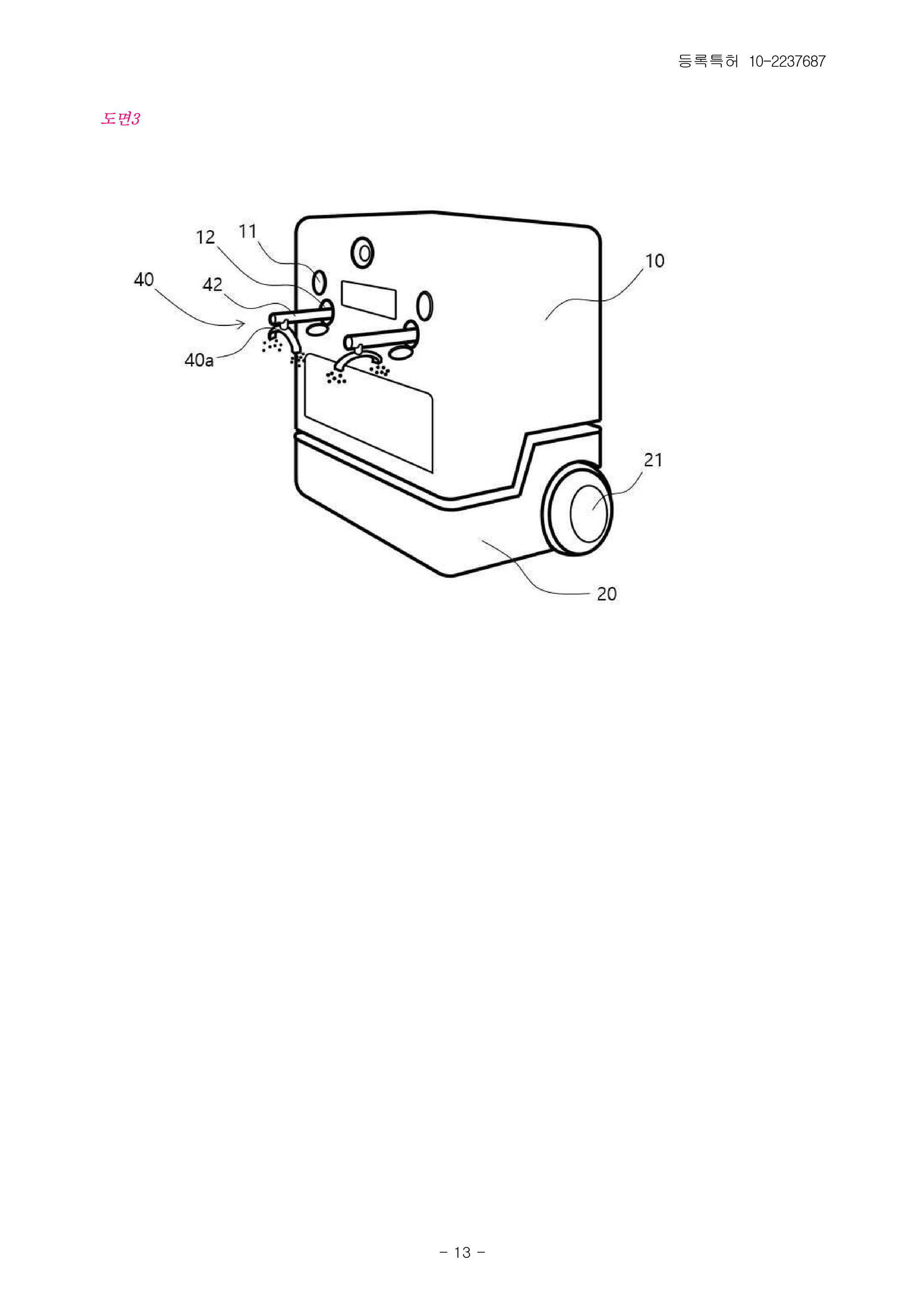

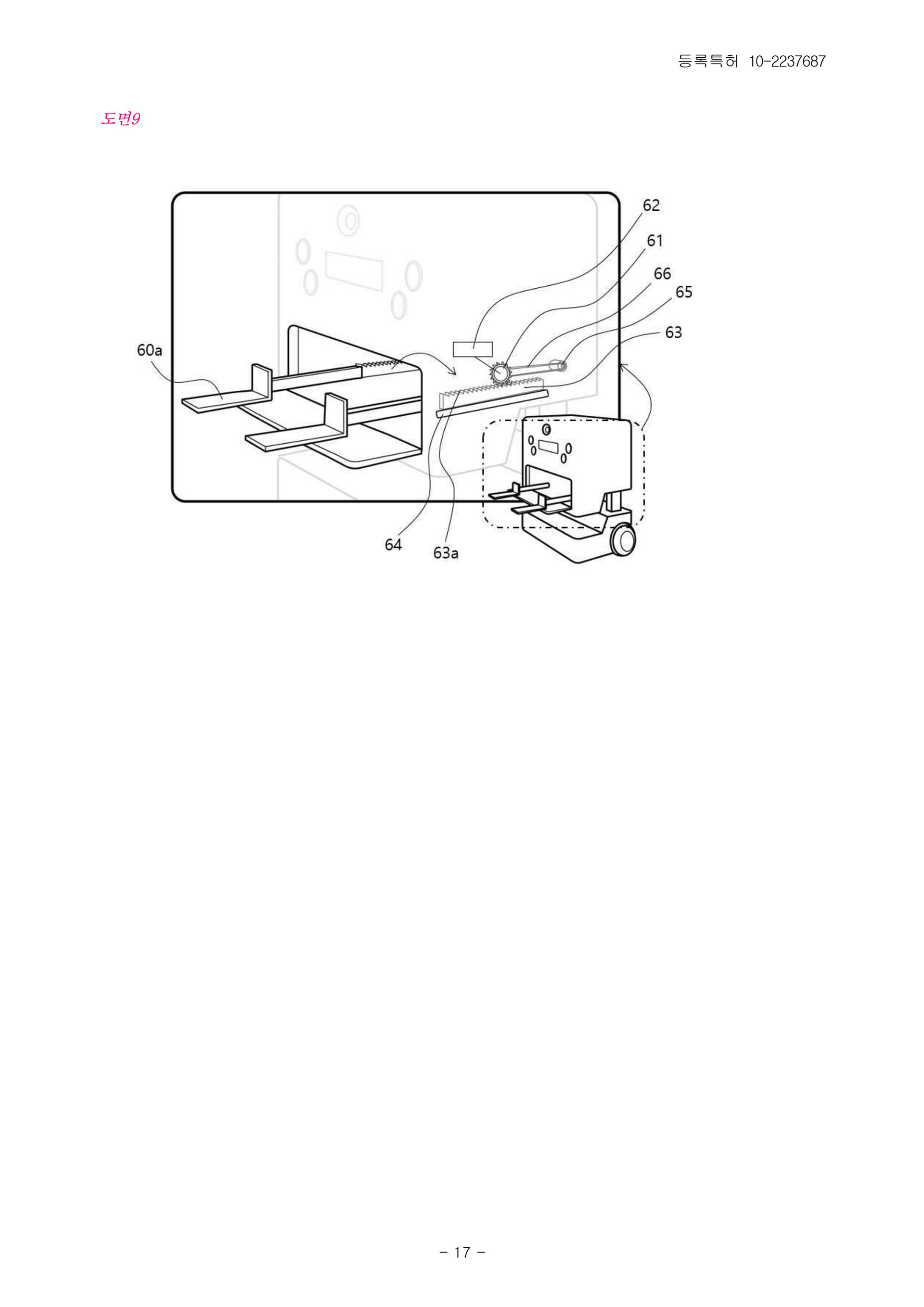

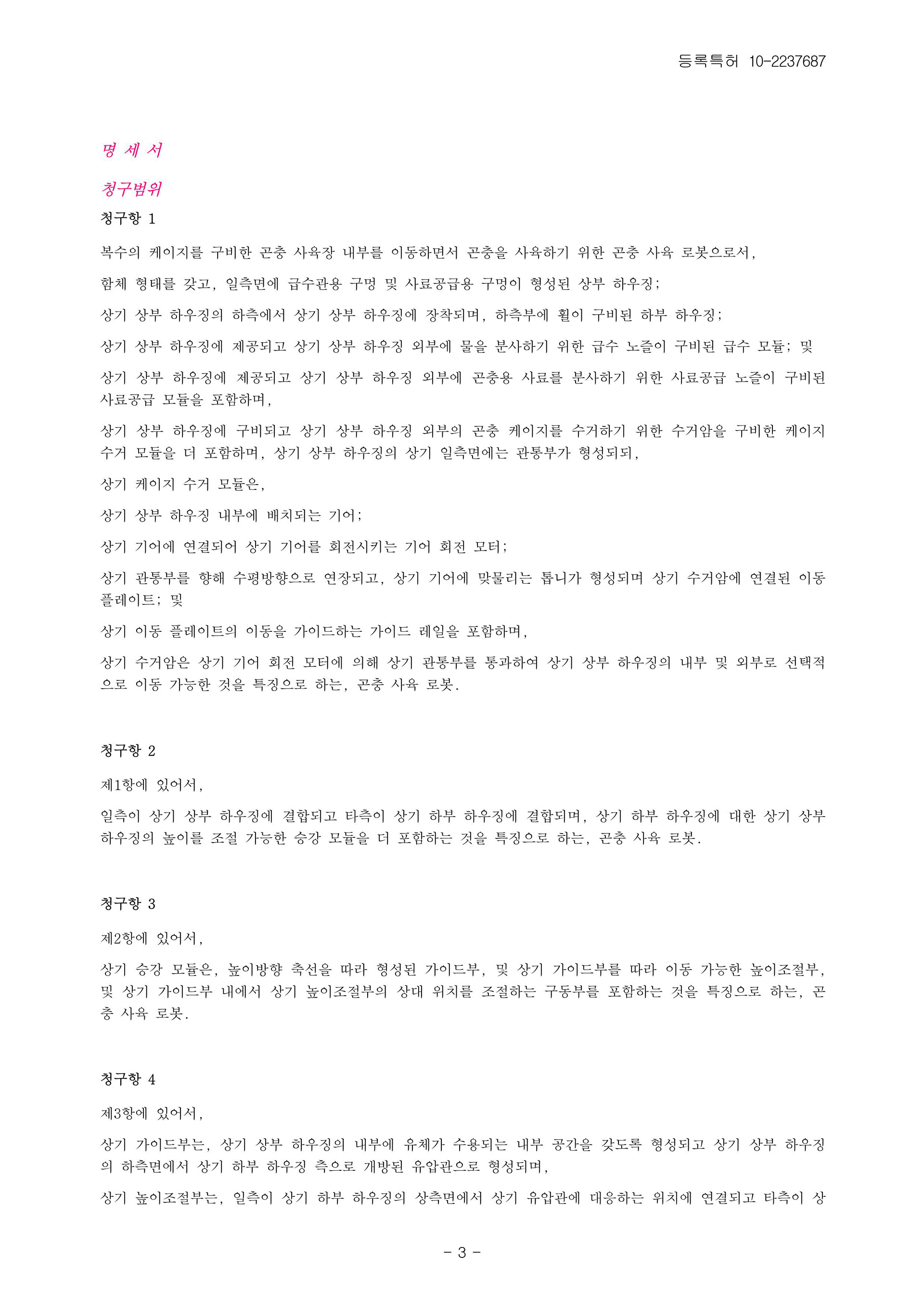

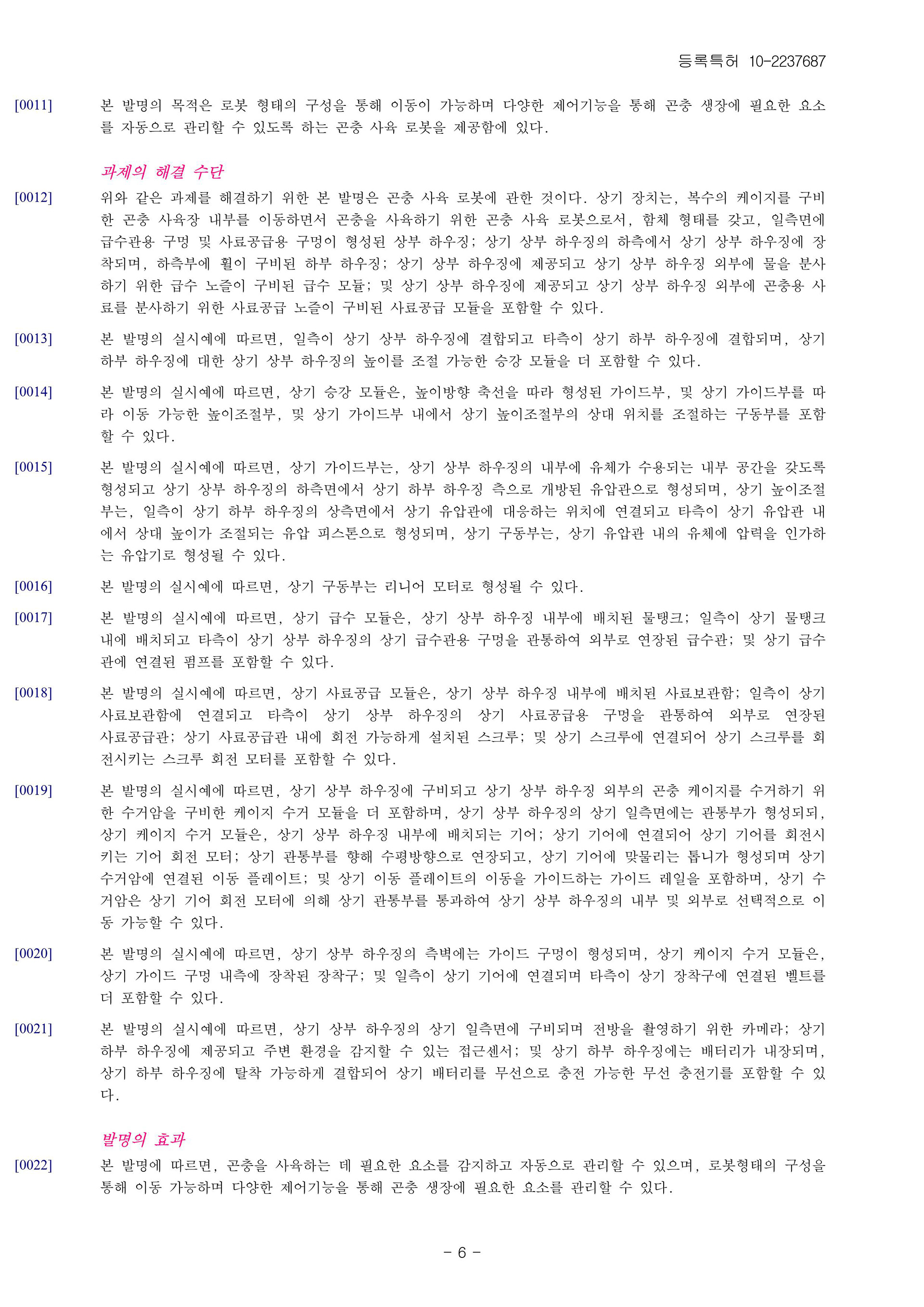

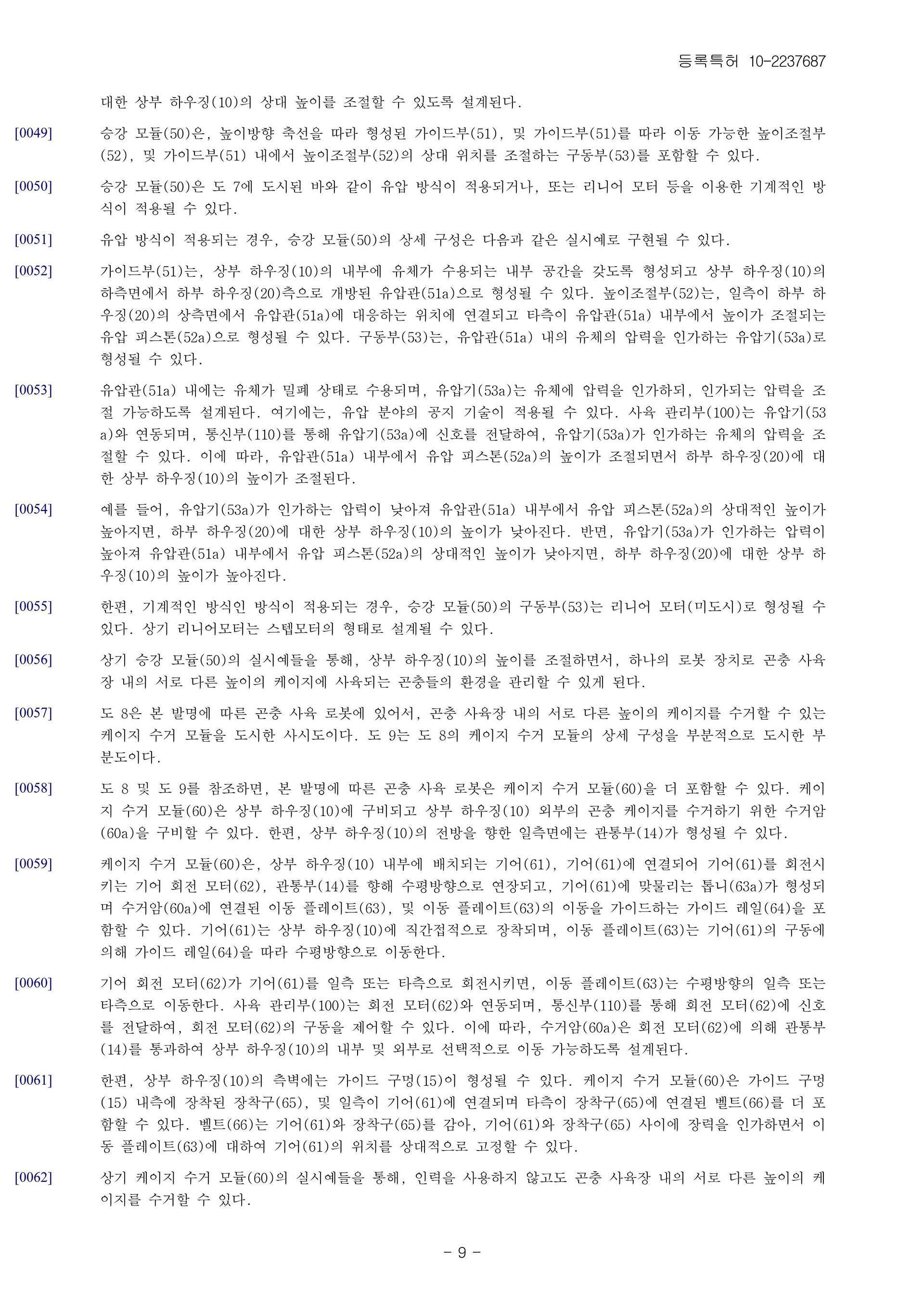

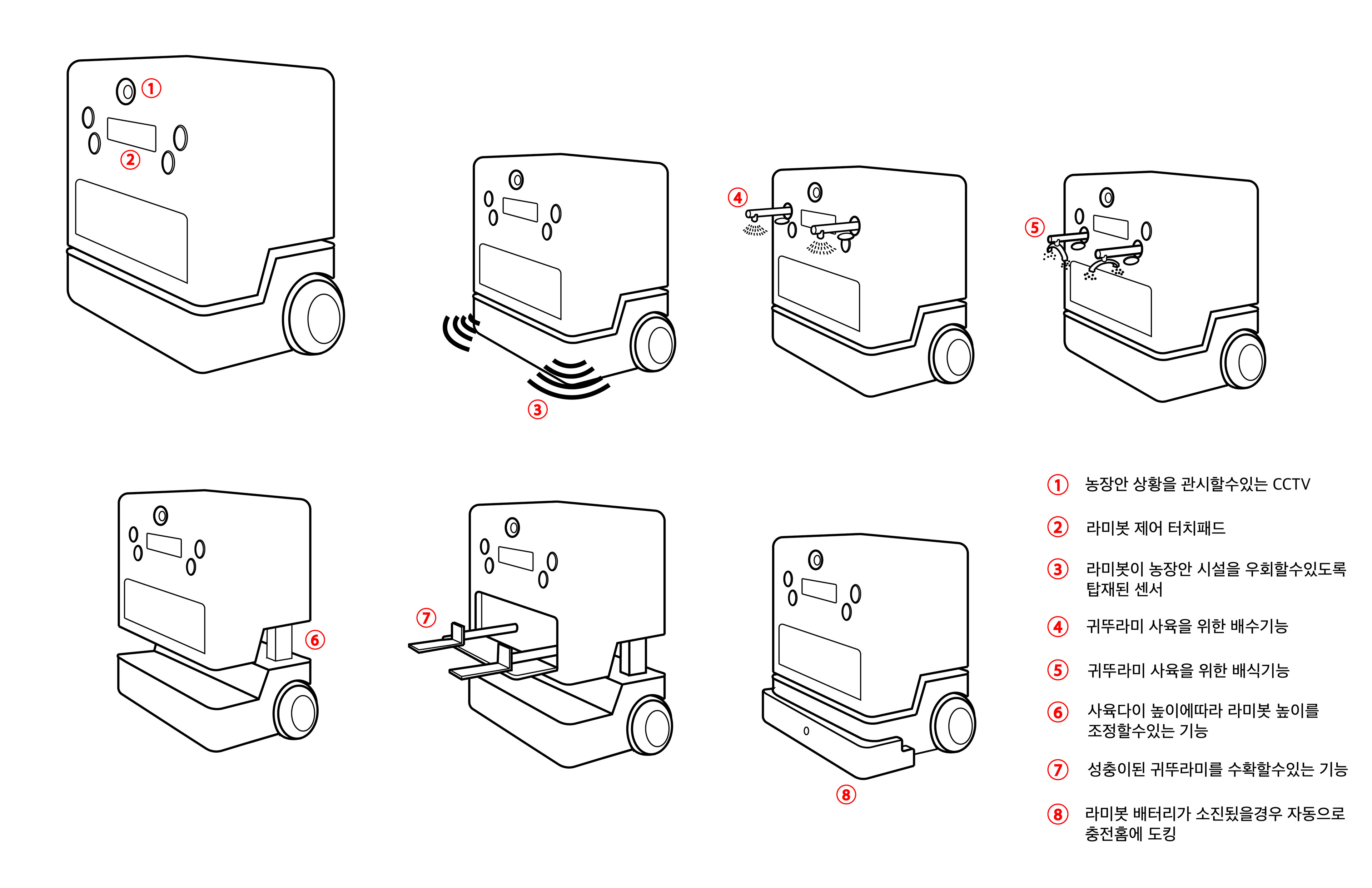

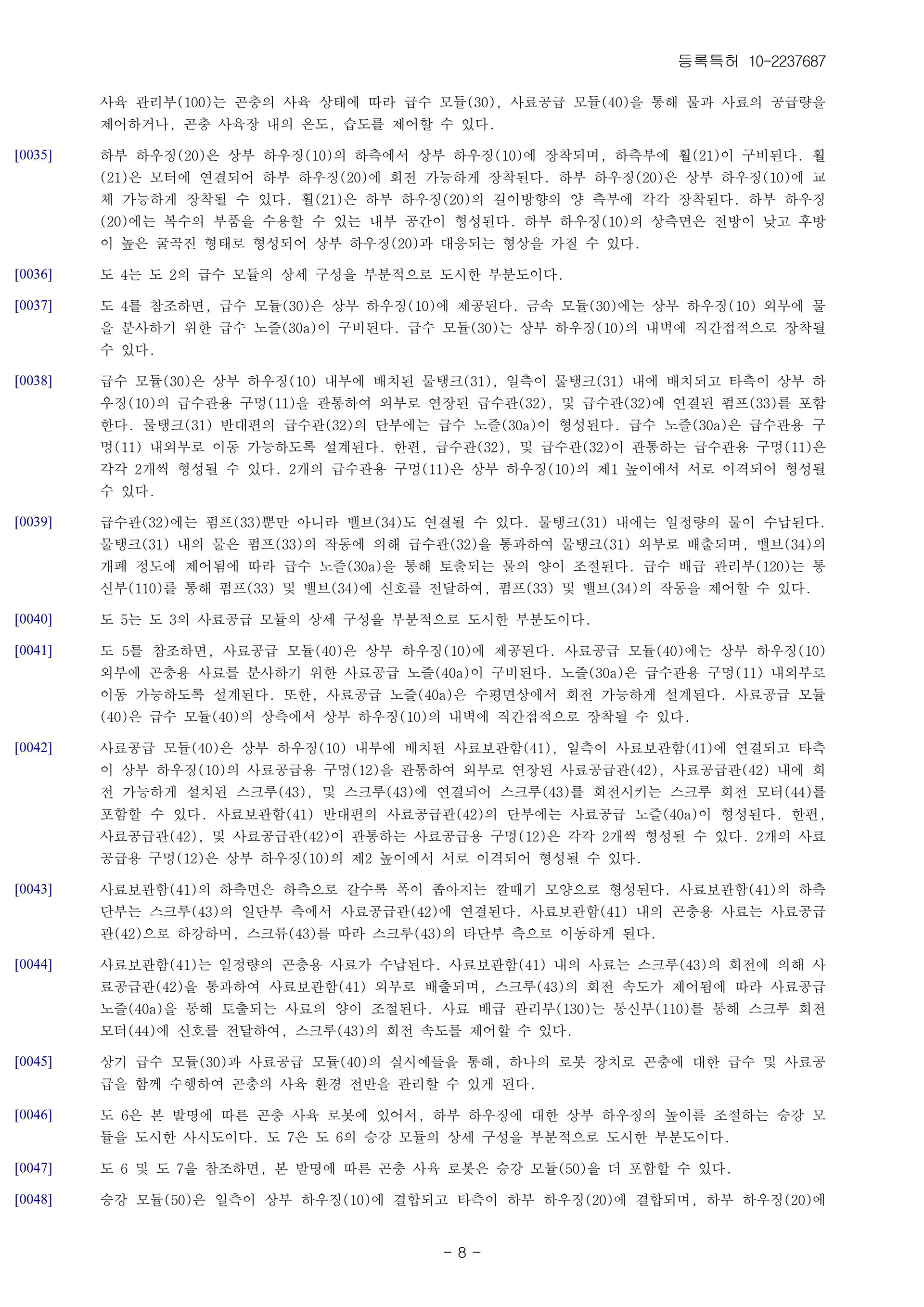

2. Insect Breeding Robot (Patent Acquired)

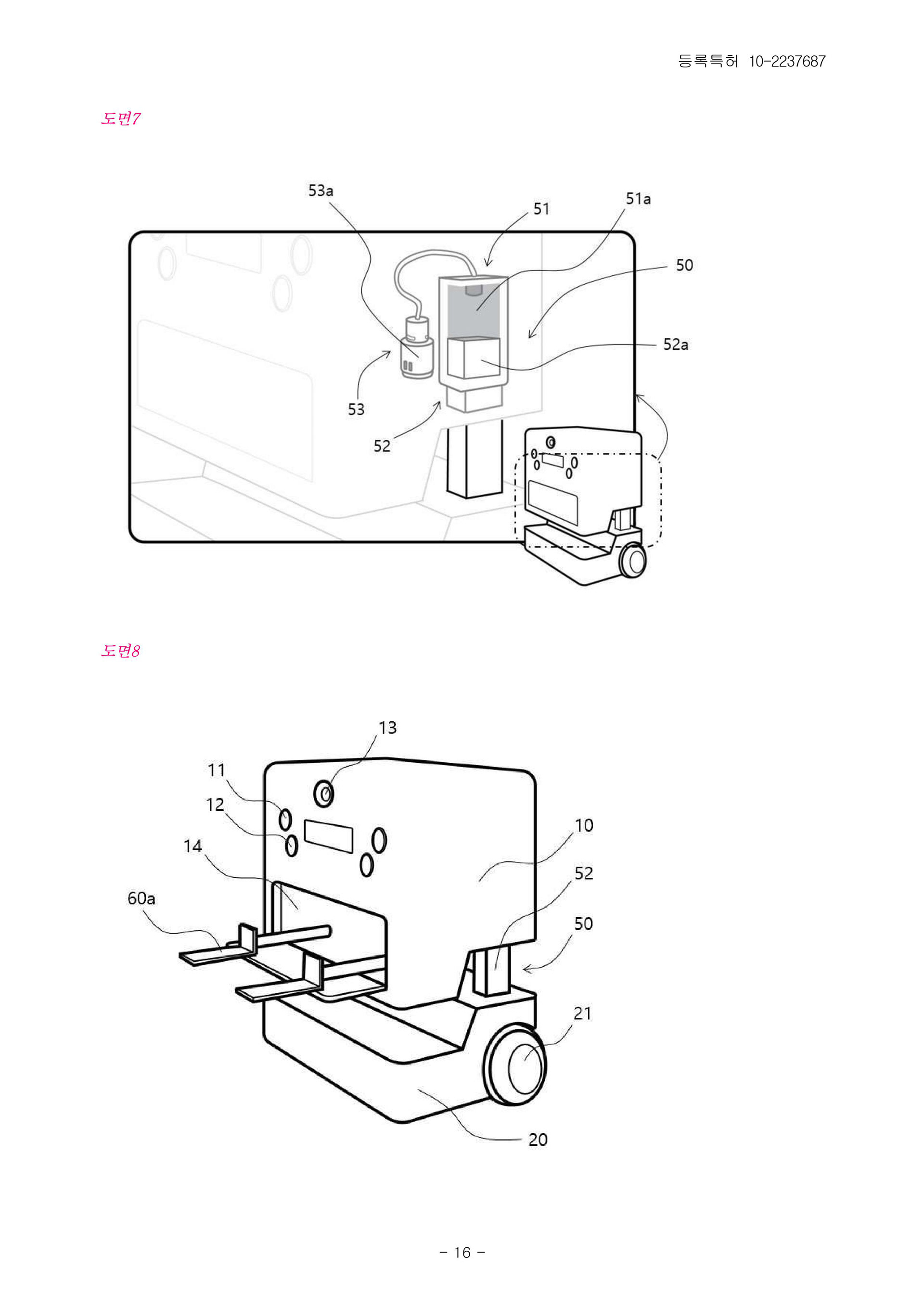

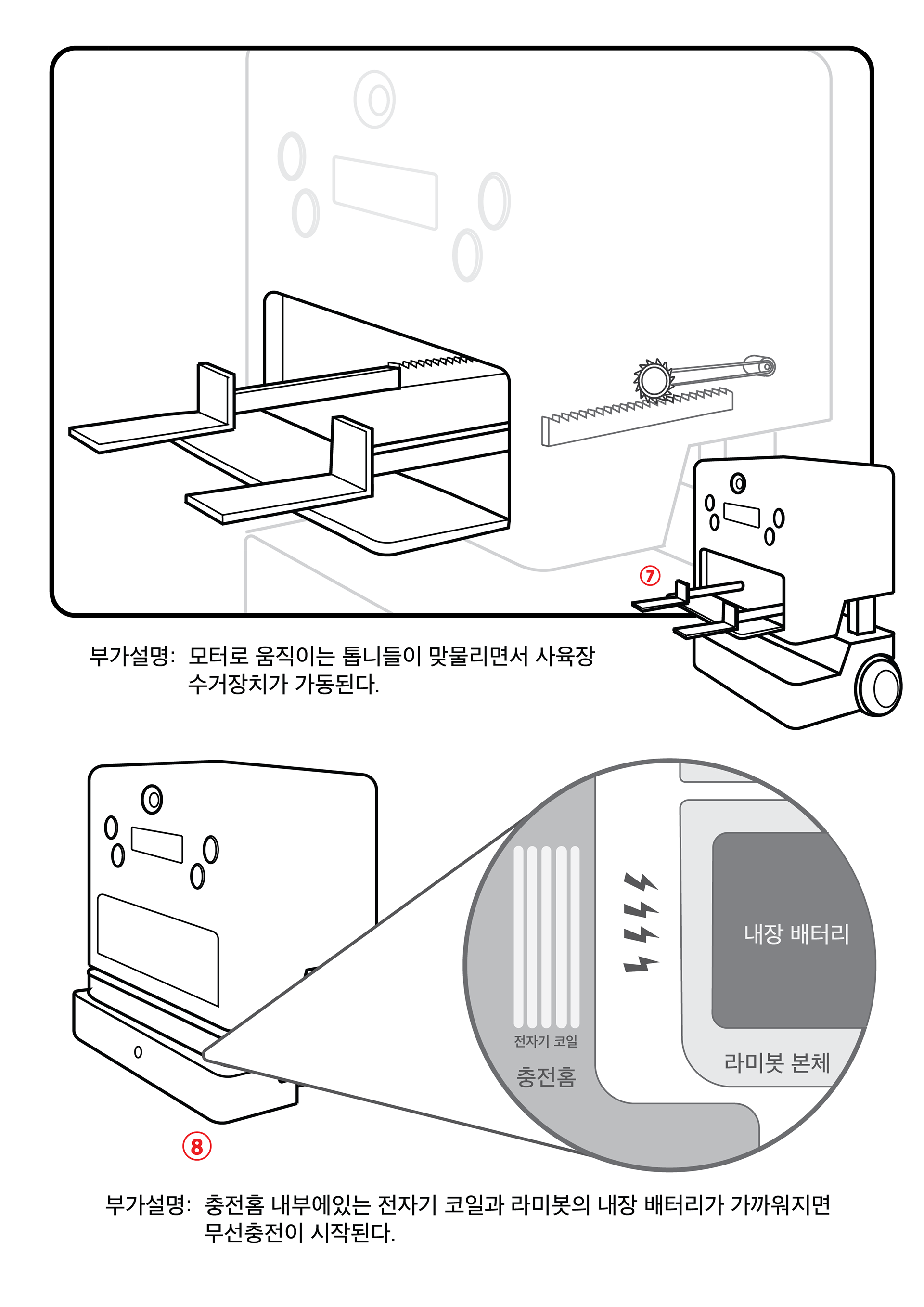

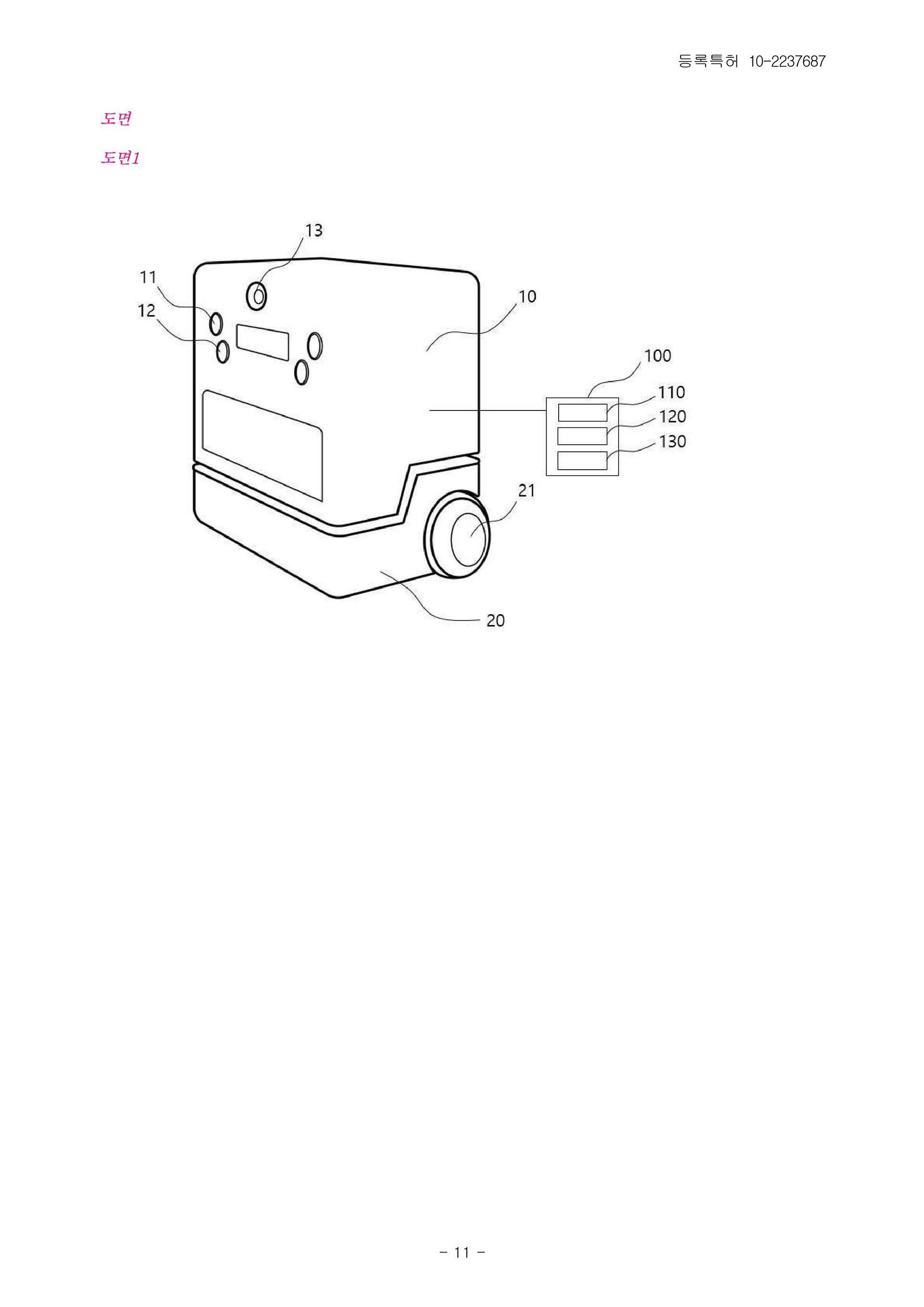

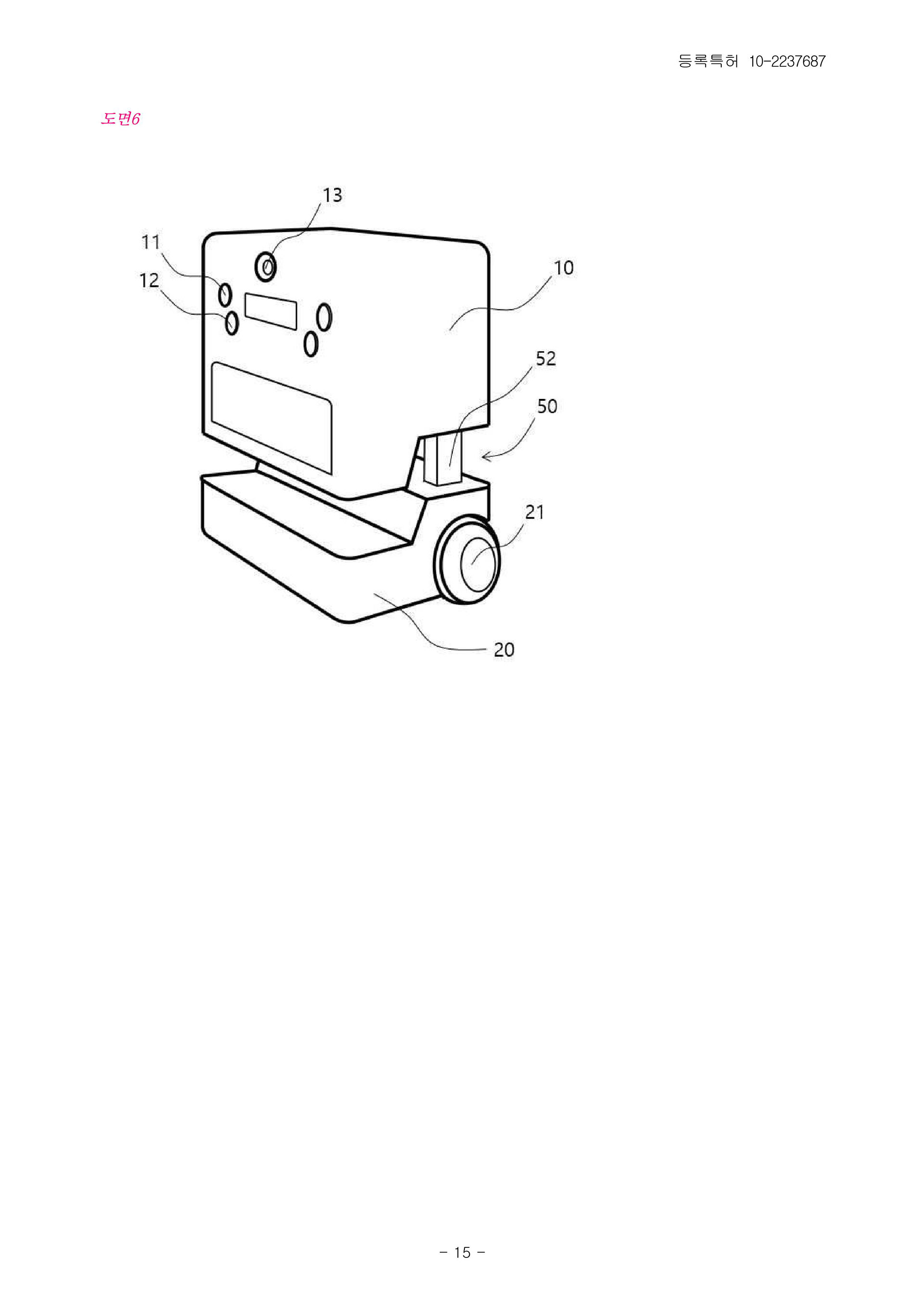

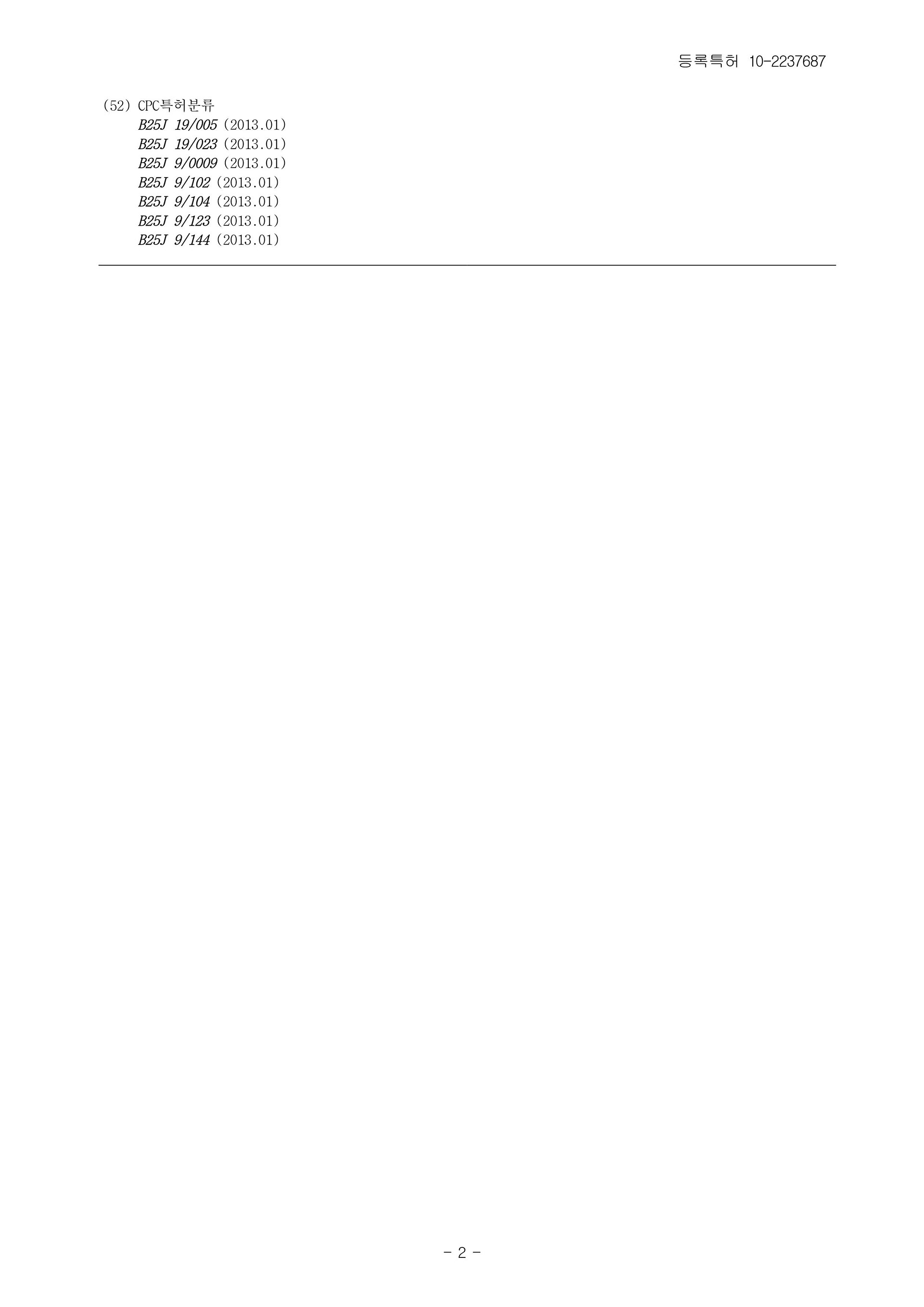

The 'Insect Breeding Robot' is a patent for a robot that has functions to water feed and harvest insects automatically in an insect smart farm.
Patent DOI: https://doi.org/10.8080/1020200169687
Registration Number: 1022376870000
Acquisition Date: (2021.04.02)

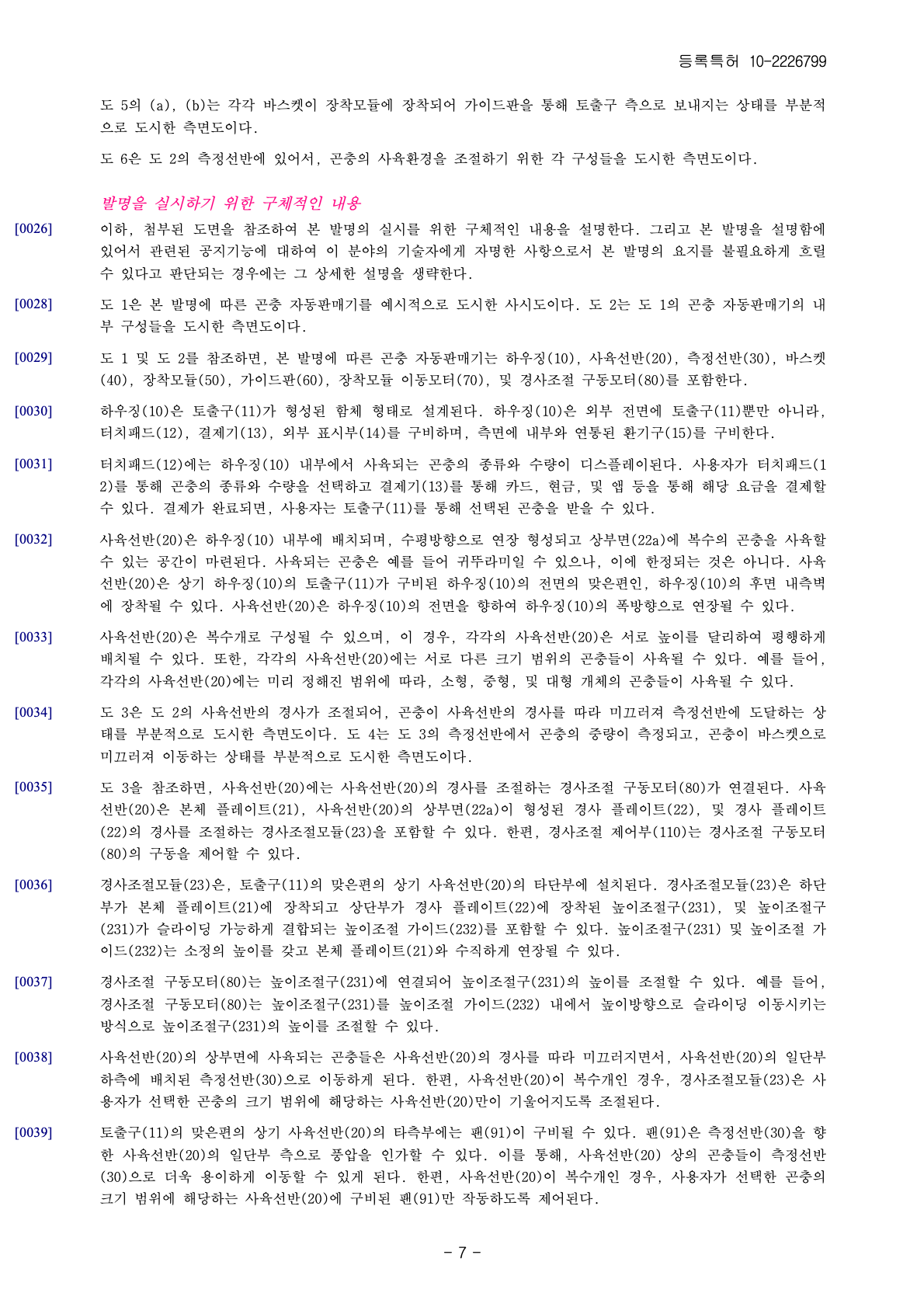

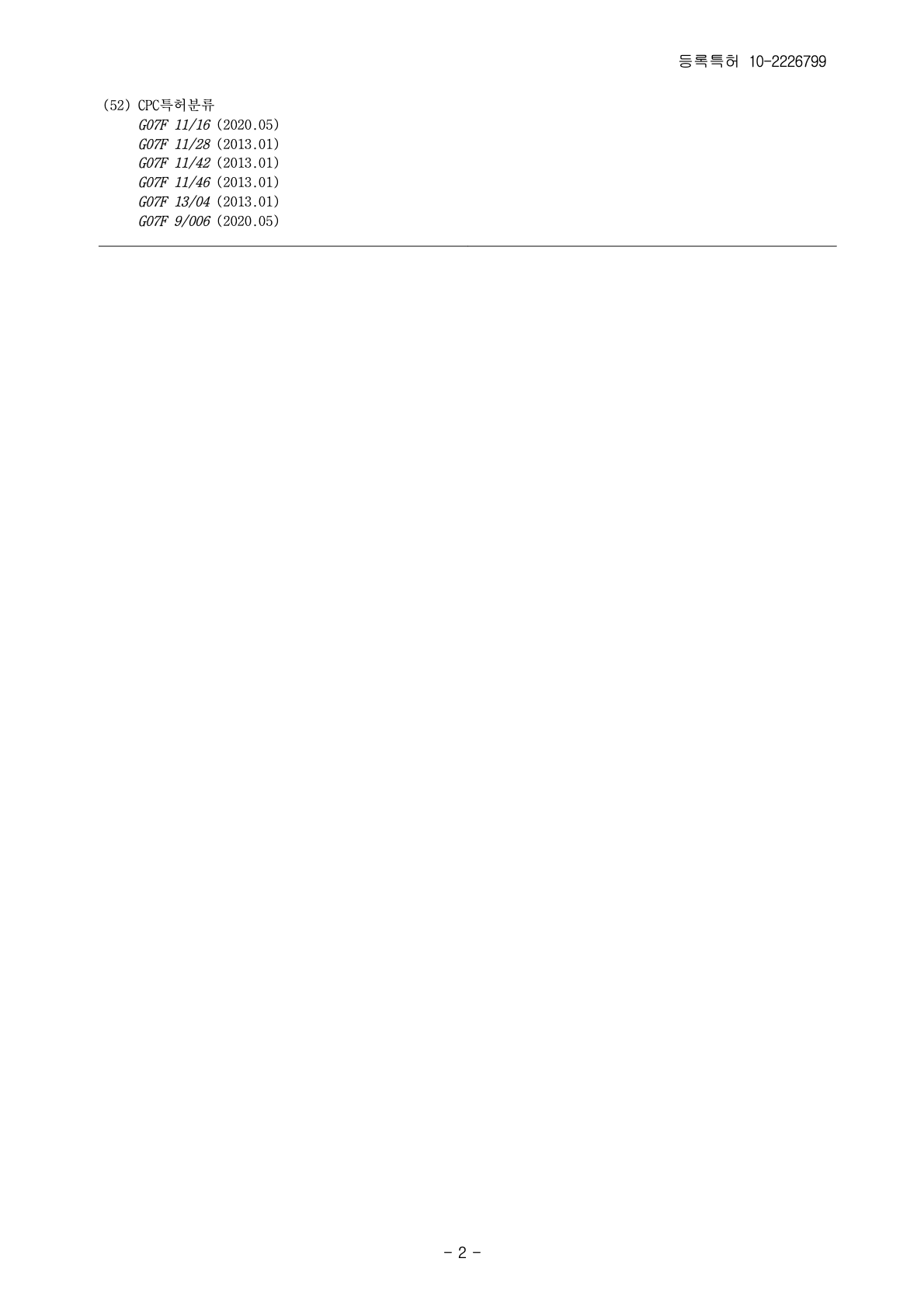

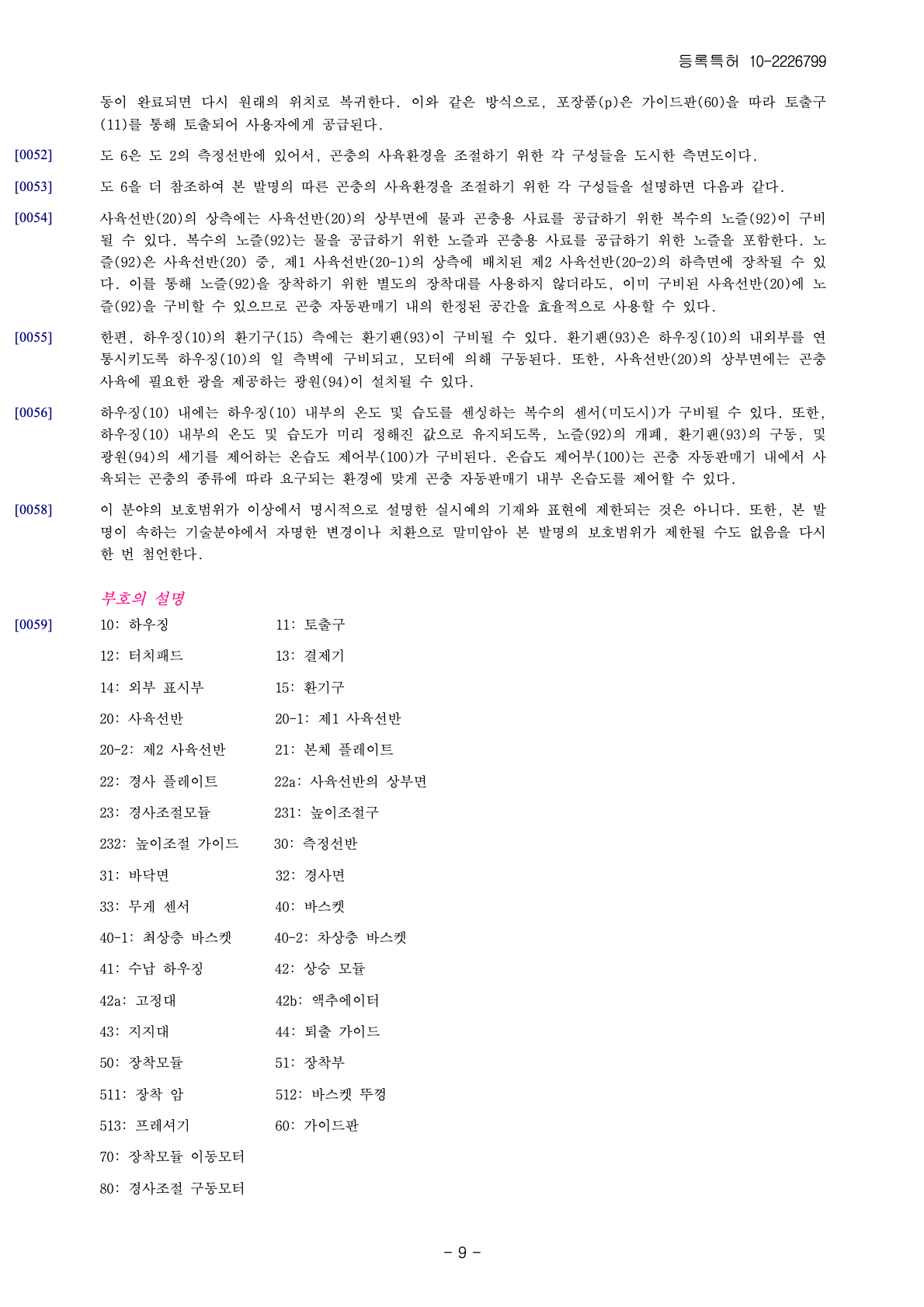

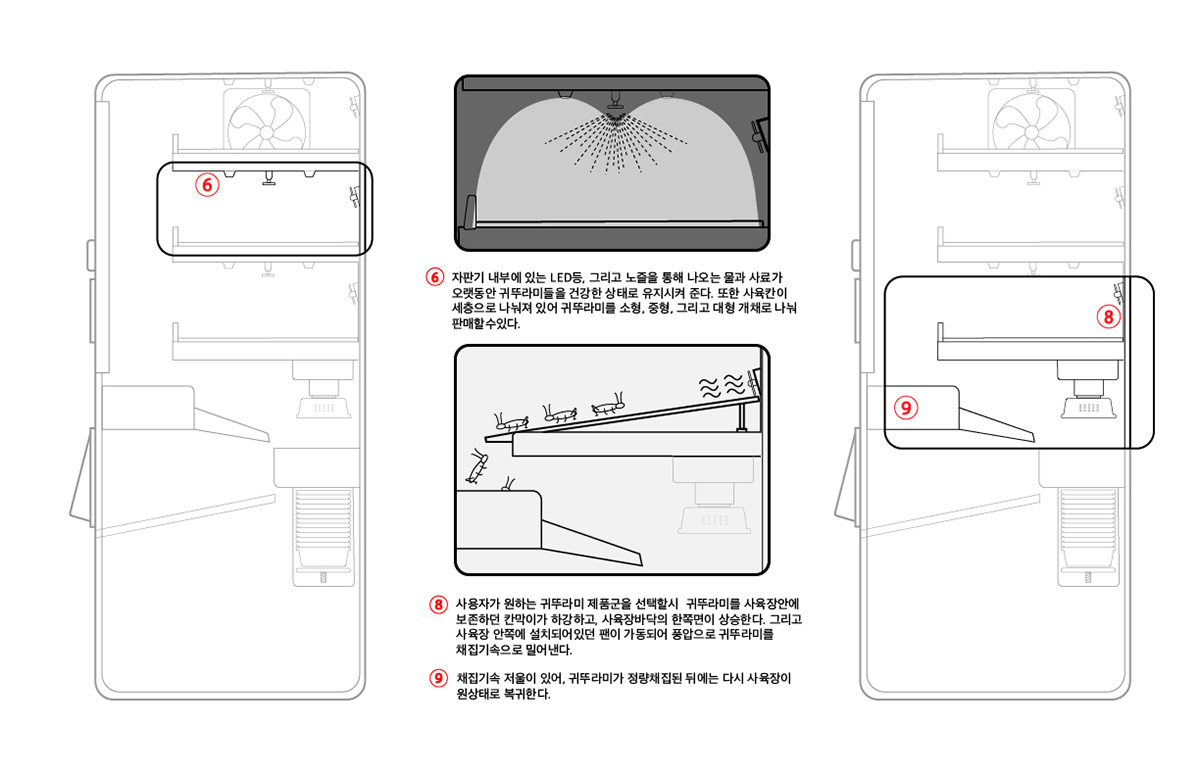

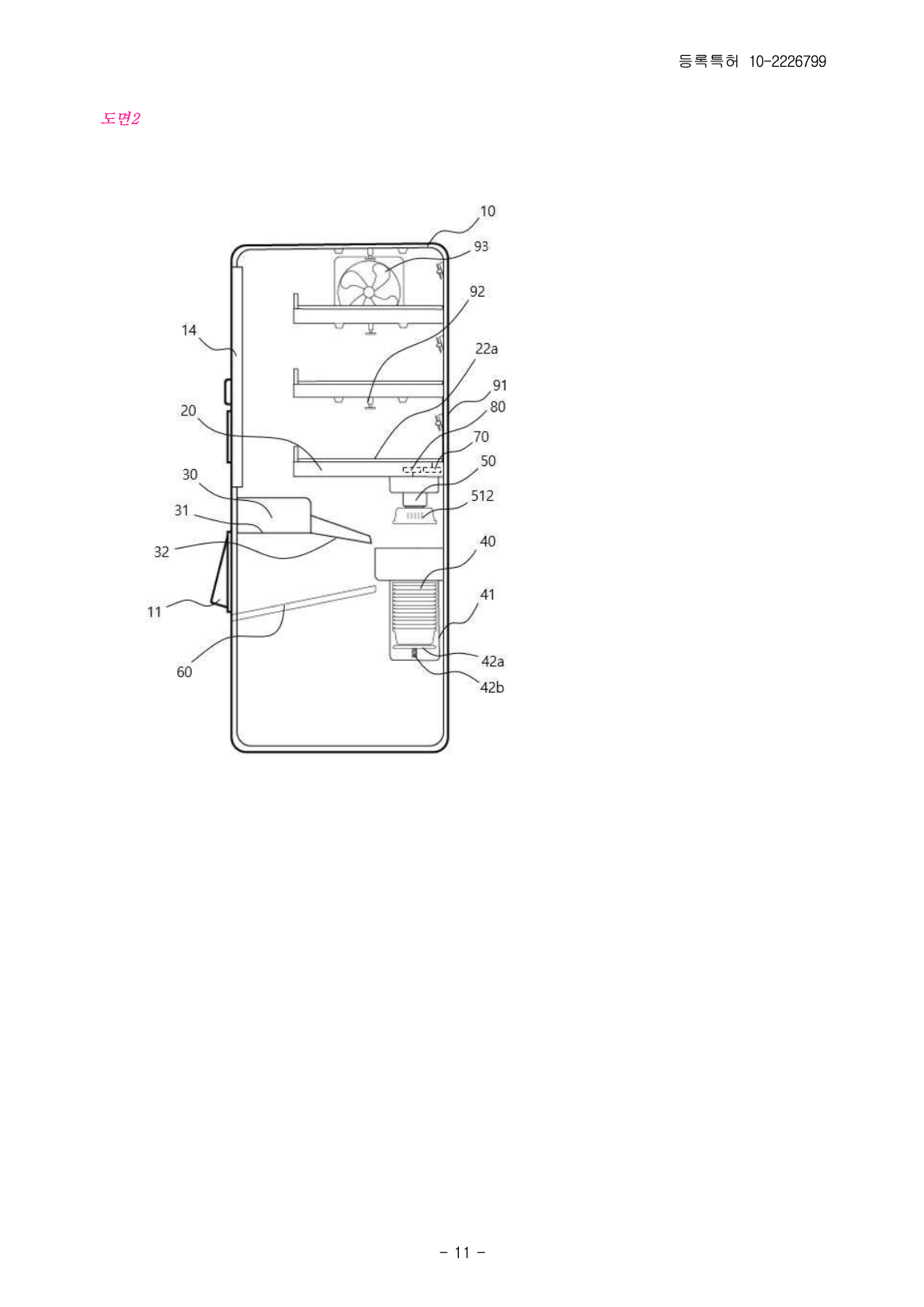

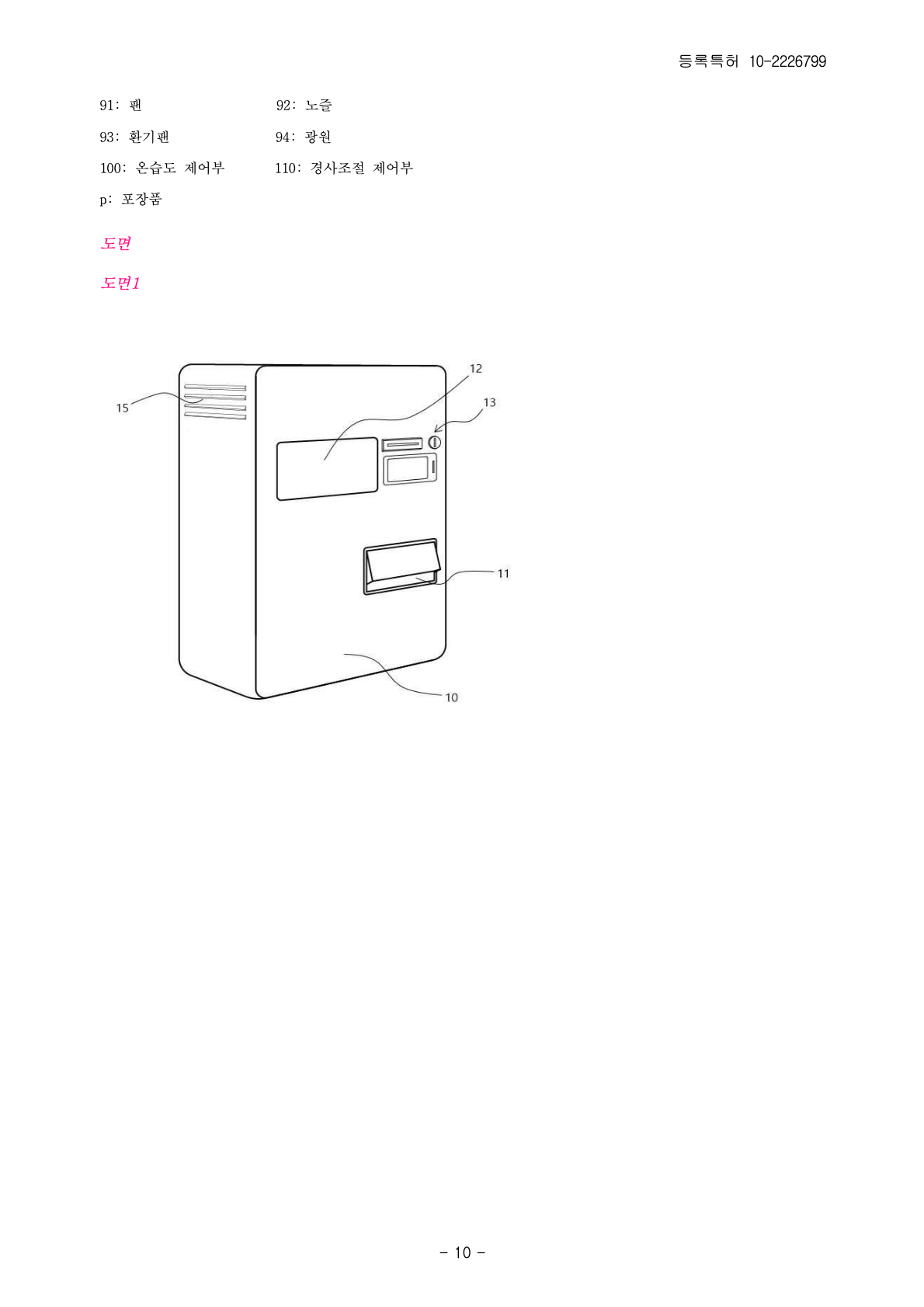

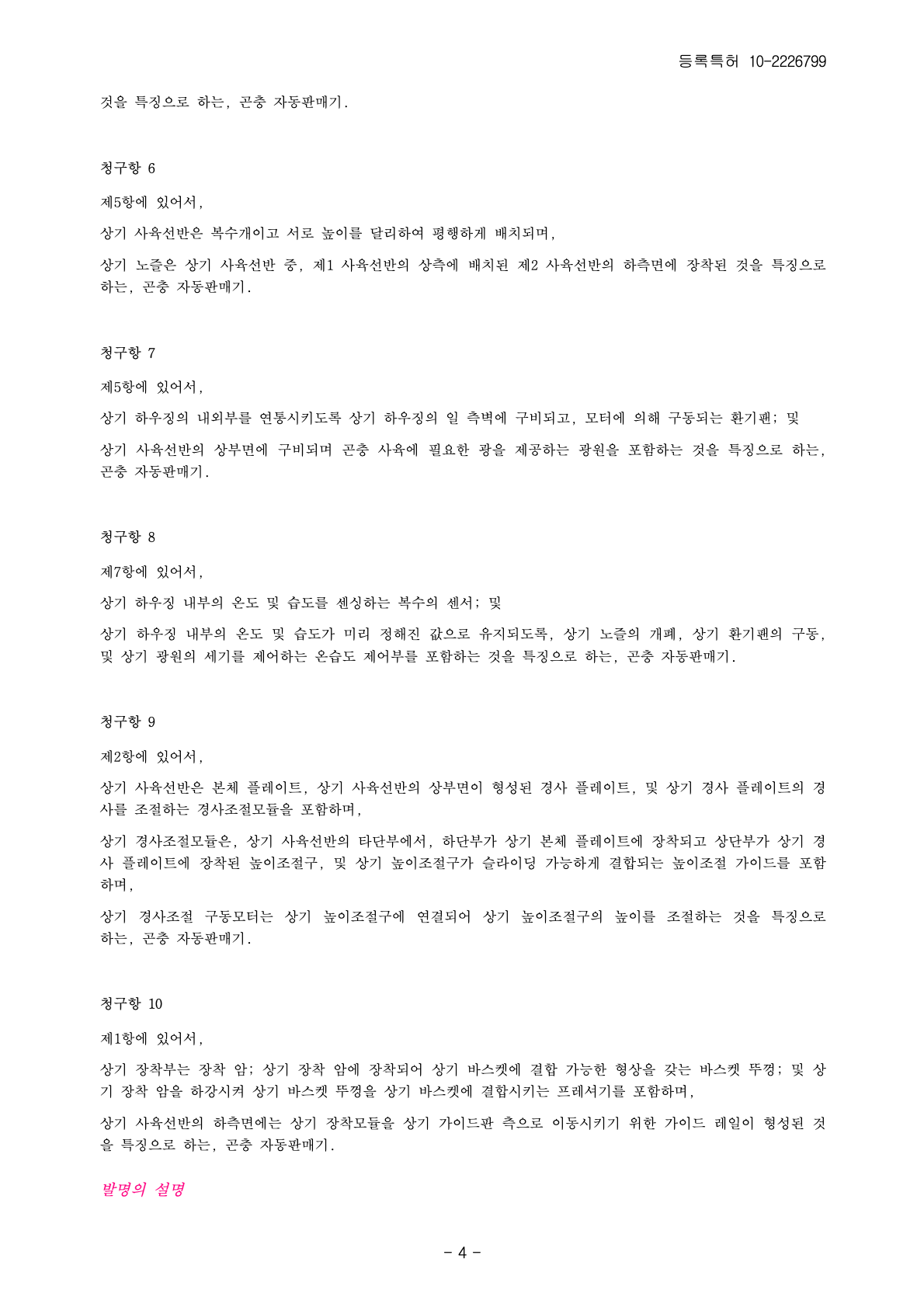

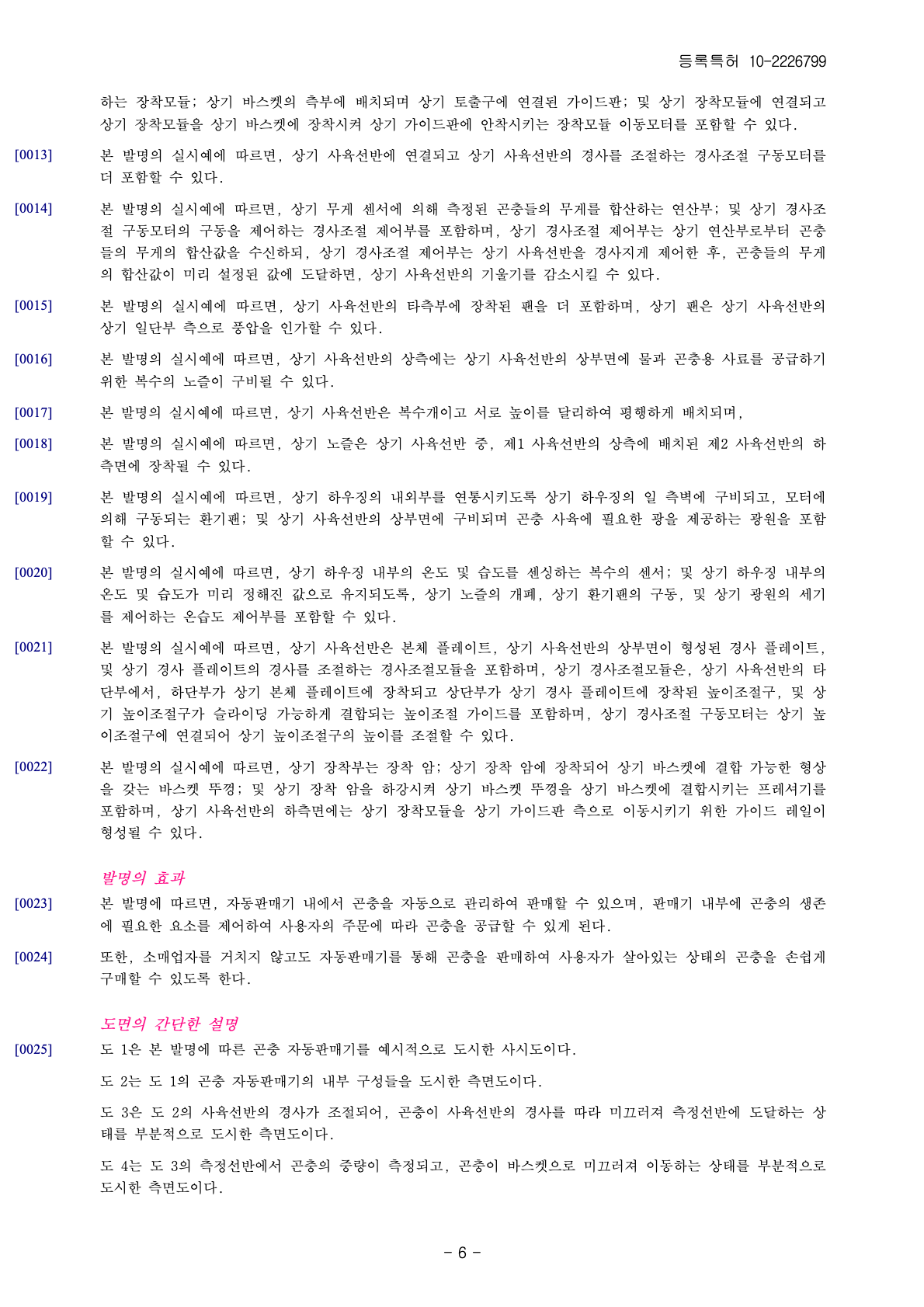

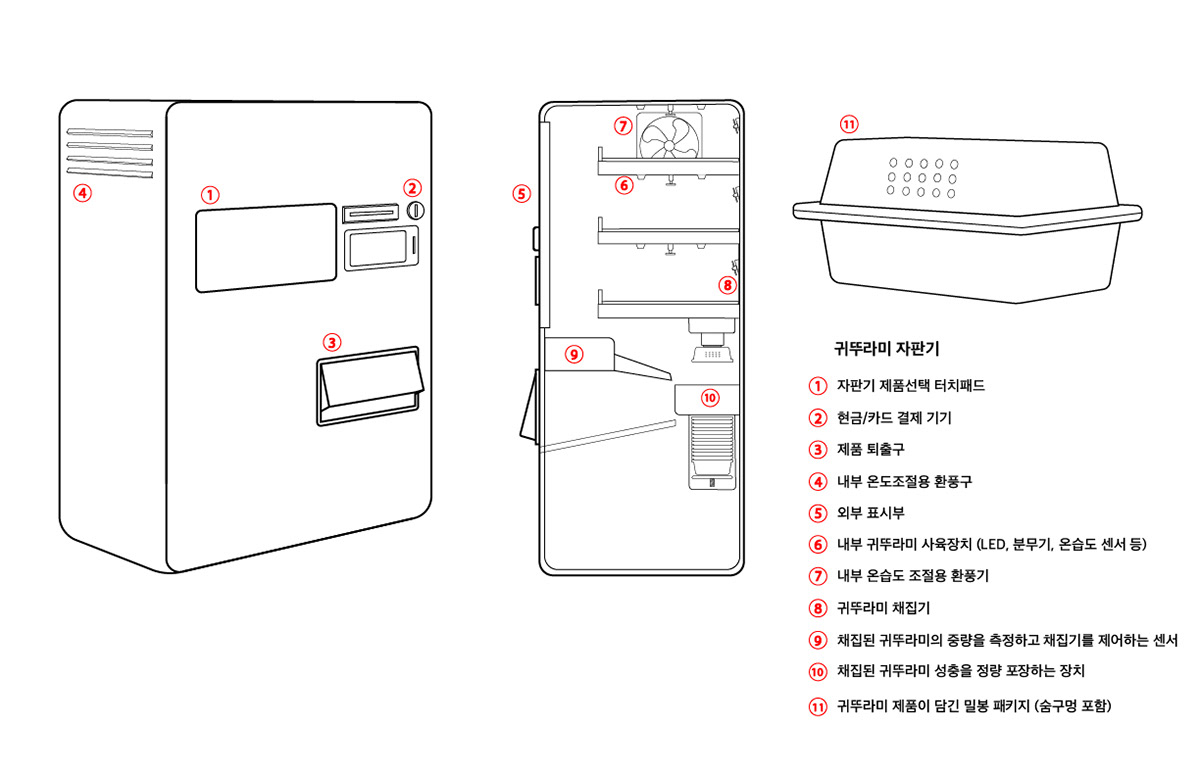

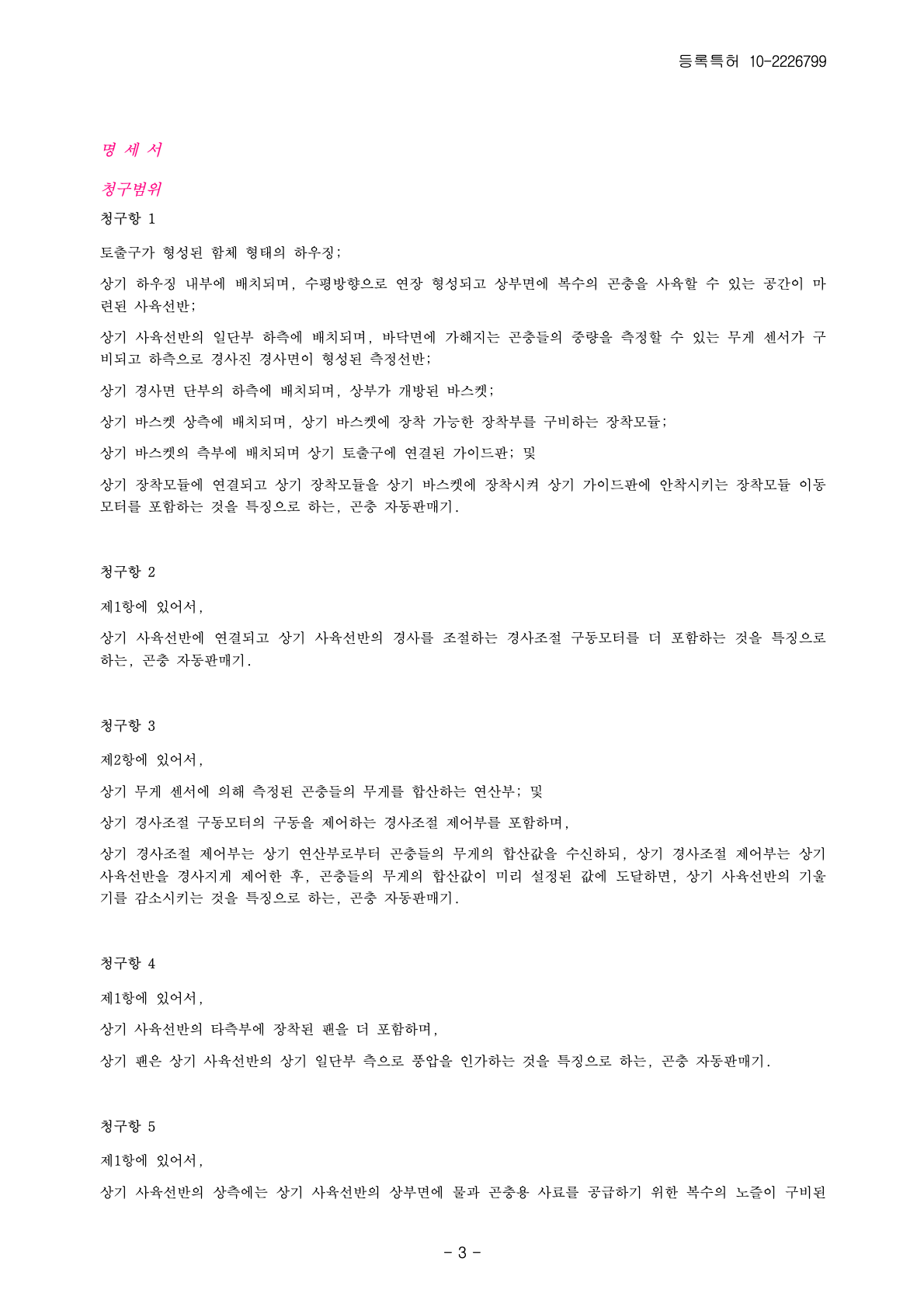

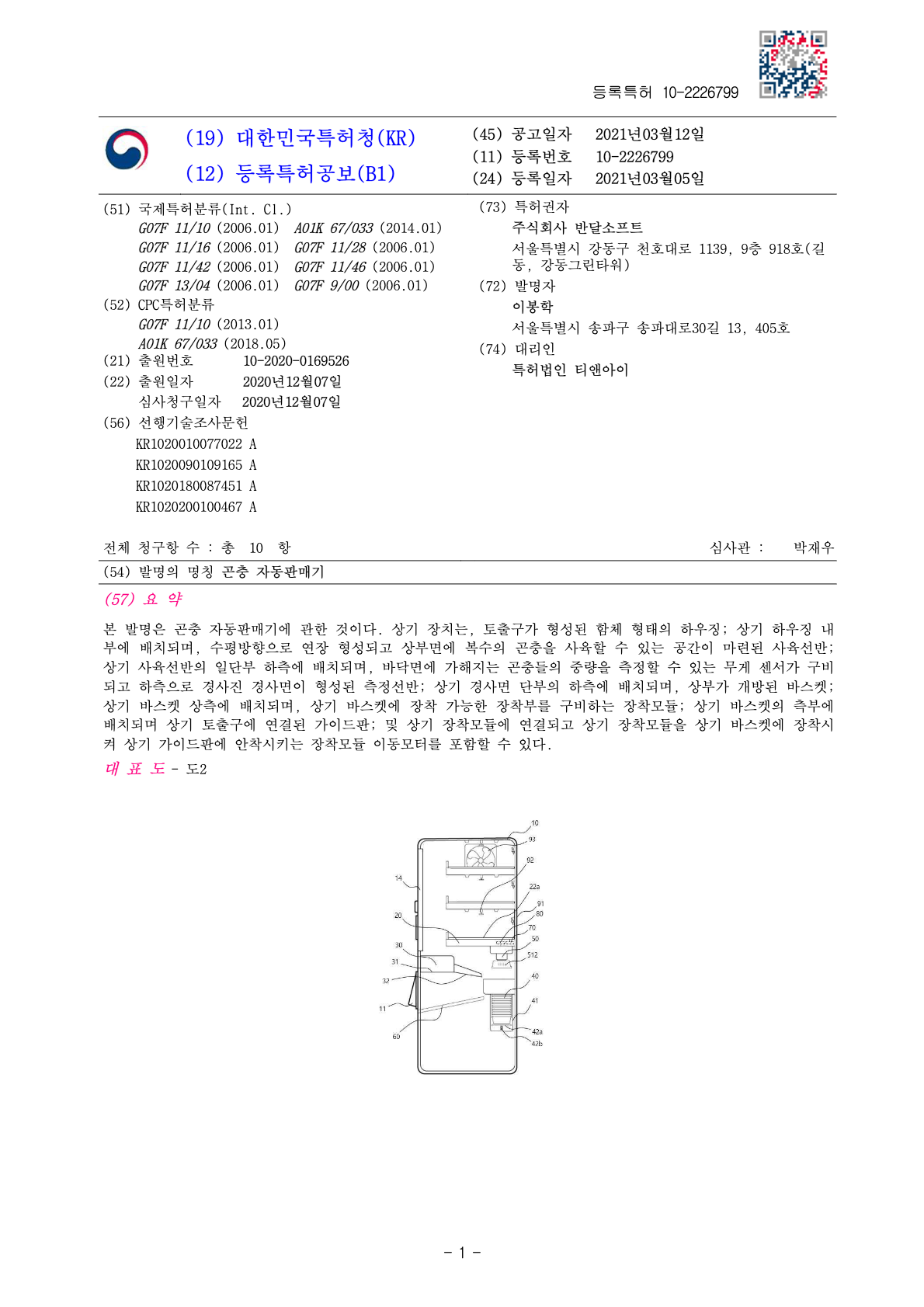

3. Insect Vending Machine (Patent Acquired)

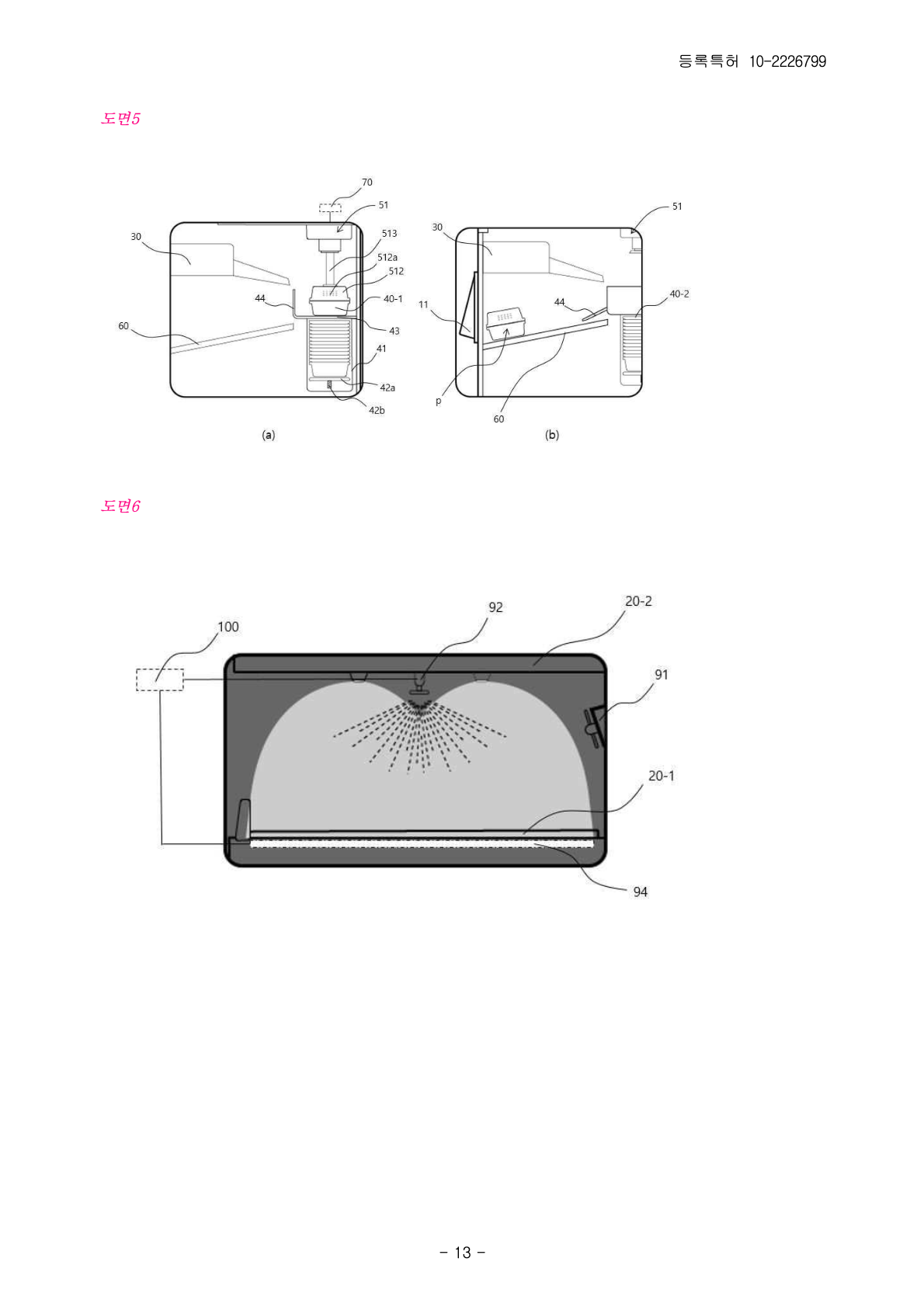

The 'Insect Vending Machine' is a patent for a vending machine that dispenses live crickets in packages mainly for the use of reptile pet owners. The patent includes a mechanism to keep the crickets healthy and alive within the vending machine.
Patent DOI: https://doi.org/10.8080/1020200169687
Registration Number: 1022267990000
Acquisition Date: (2021.03.05)

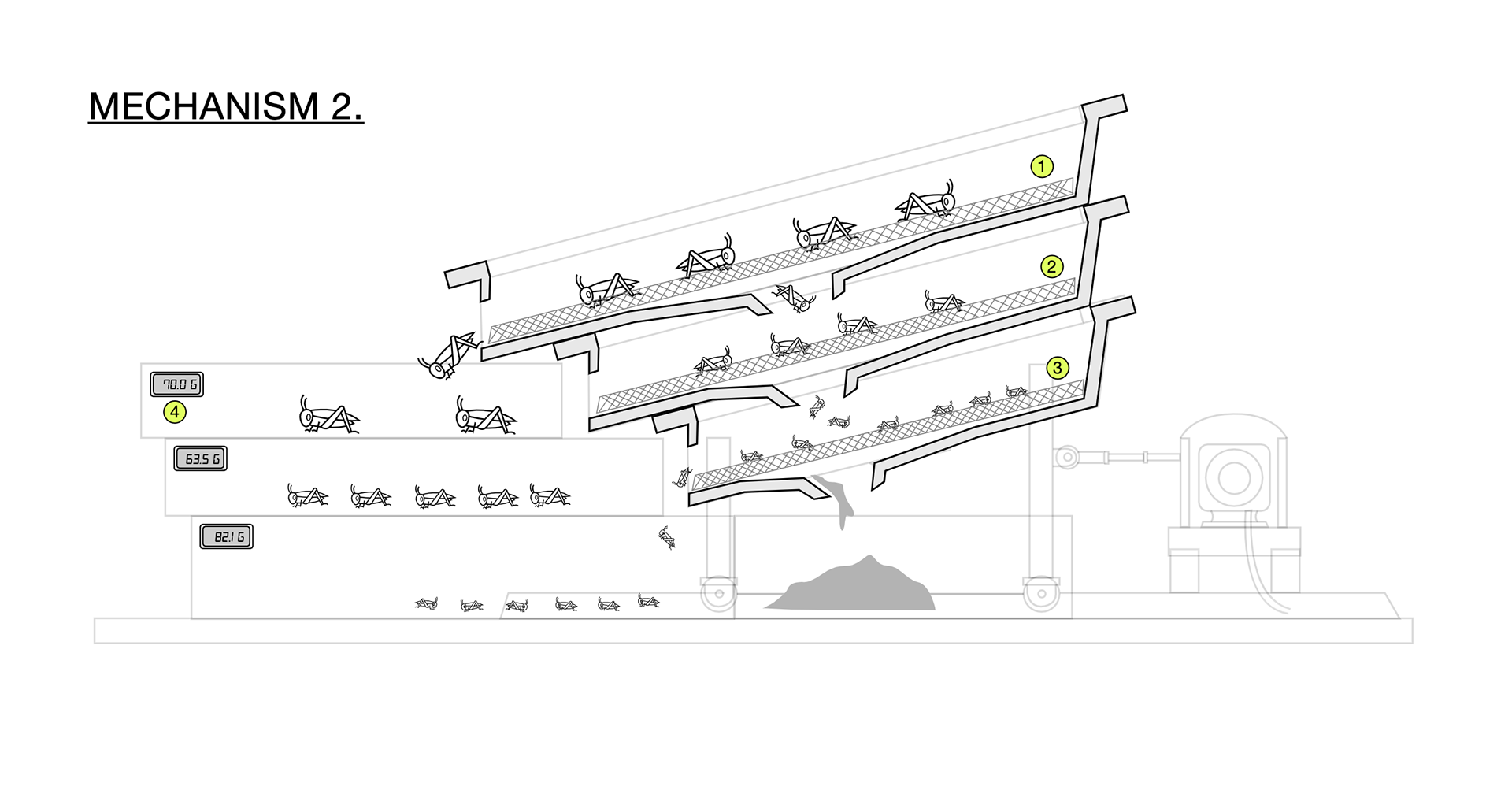

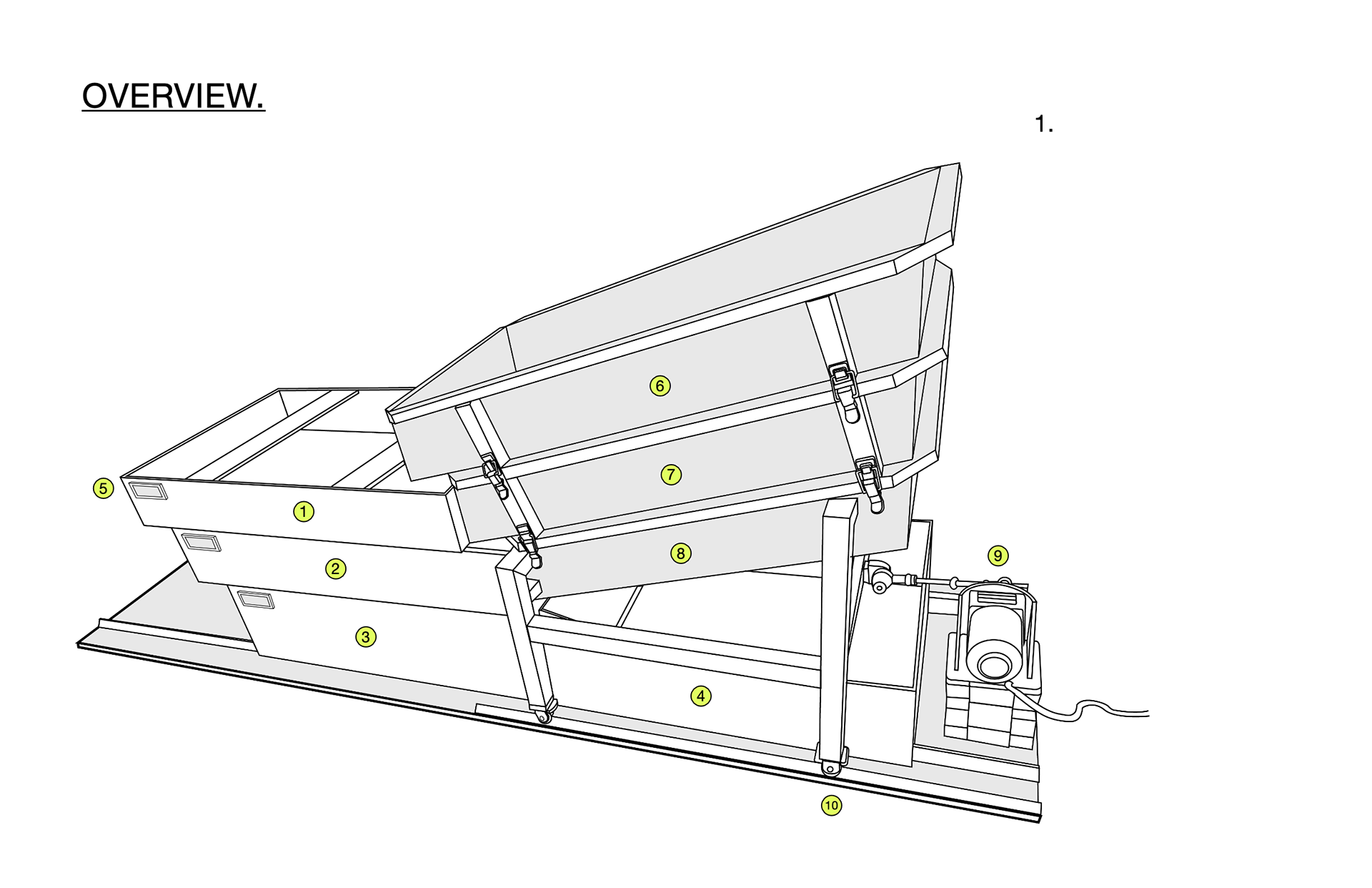

4. Insect Sorting Machine (Patent Pending)
The insect sorting machine sorts harvested insect into large, medium and small sizes to be processed and sold to customers for varying needs.

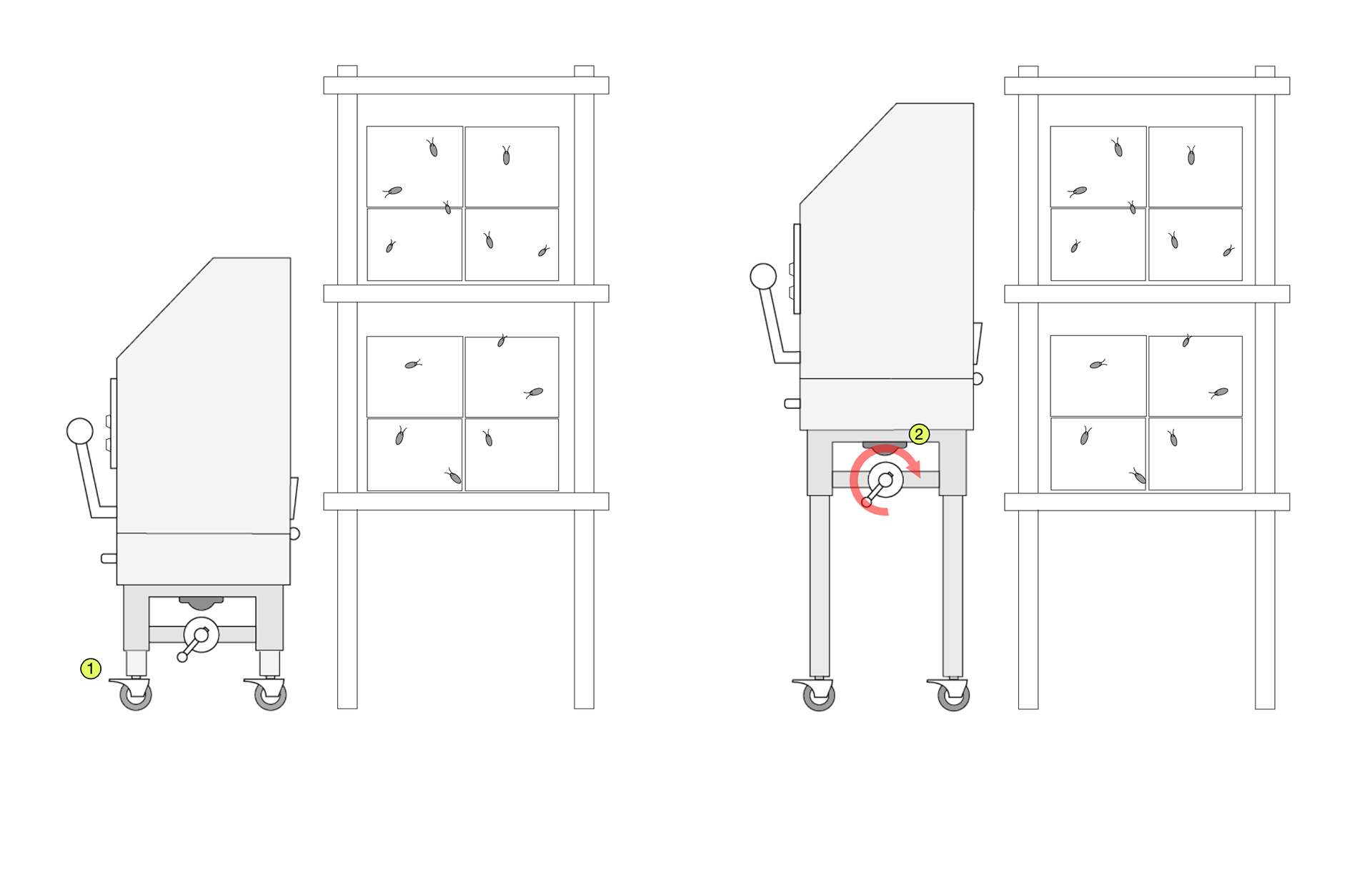

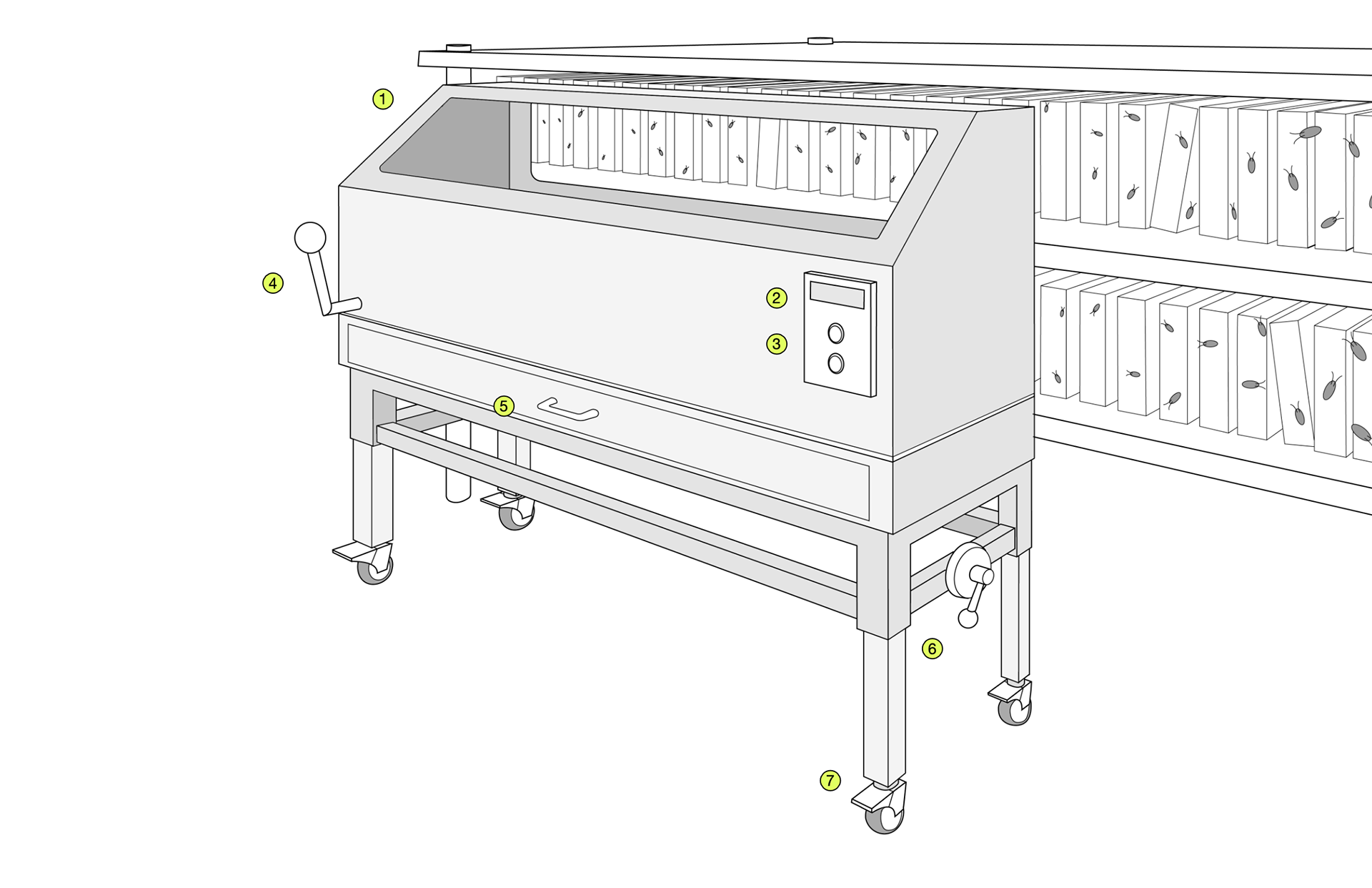

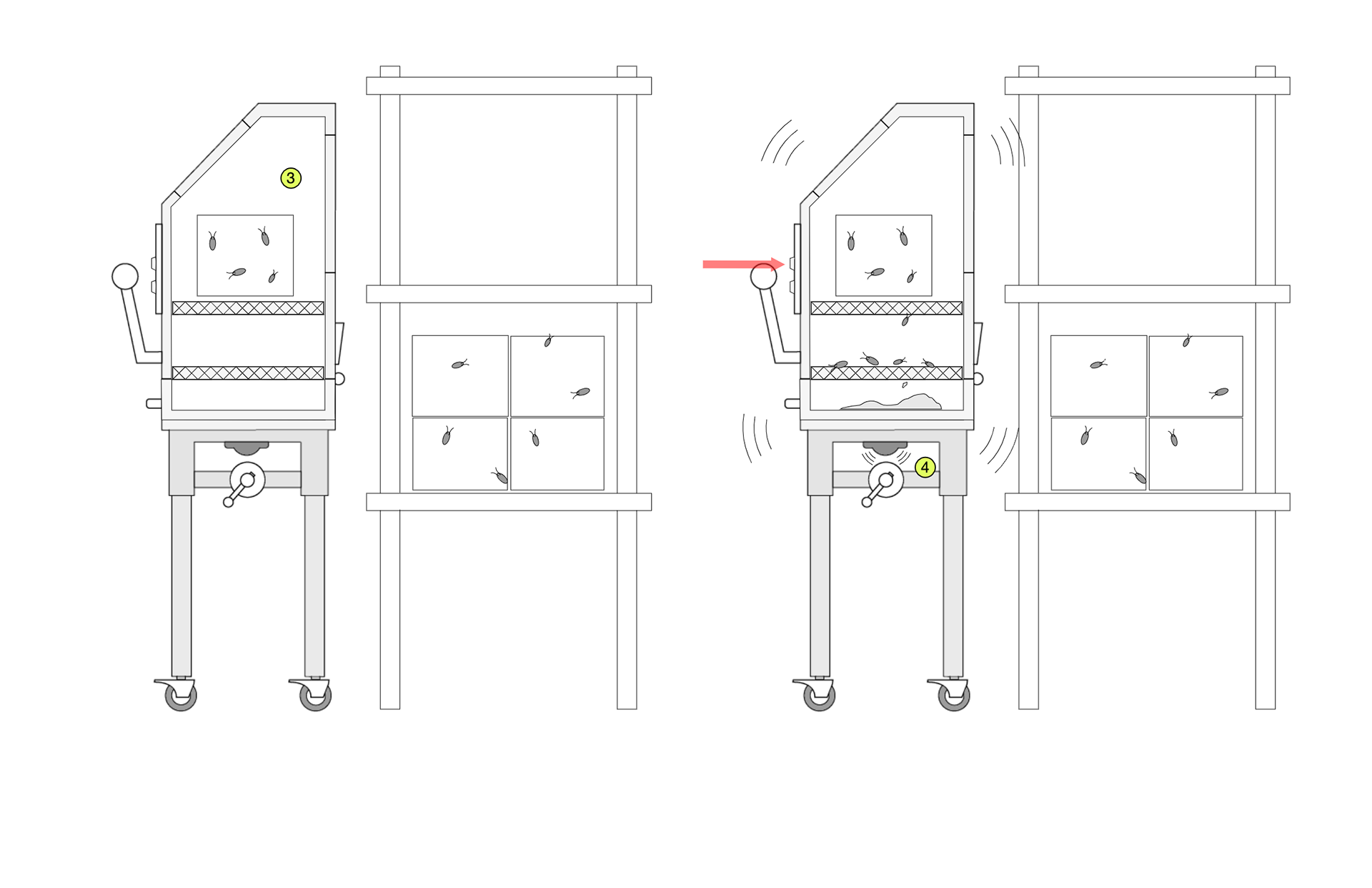

5. Insect Harvesting Machine (Patent Pending)
The insect harvesting machine assists the user in manual harvesting of insects.
All patents can be viewed in Korean Intellectual Property Rights Information Servis (KIPRIS) : http://www.kipris.or.kr/khome/main.jsp
